Kia Cee'd: Lighting System / Overhead Console Lamp Repair procedures
| Inspection |
| 1. |

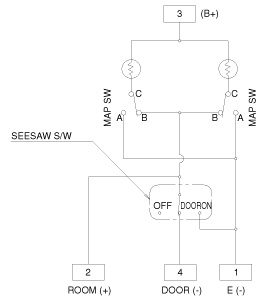

Remove the overhead console lamp assembly then check for continuity
between terminals. If the continuity is not as specified, replace the
map lamp switch.
[Non-Sunroof Type]
[Panoramaroof Type]
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
If necessary to replace the bulb only, replace the bulb after opening
the overhead console lens (A).
[Non-Sunroof Type]
[Panoramaroof Type]
|
| 3. |
Loosen 2 screws holding the overhead console (A).
|
| 4. |
Disconnect the connectors (A) of sunroof switch and lamp switch then
remove the overhead console lamp assembly.
|
| Installation |
| 1. |
Install the overhead console lamp after connecting the panoramaroof
switch connector and lamp connector.
|
| 2. |
Install the lens after tightening 2 screws.
|
