Kia Cee'd: Maintenance / Parking brake - hand type

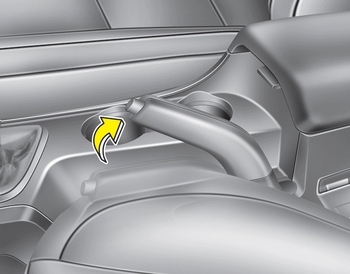

Checking the parking brake
Check the stroke of the parking brake by counting the number of “clicks’’ heard while fully applying it from the released position. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, we recommend that the system be serviced by an authorized Kia dealer.
Stroke : 6~8 “clicks’’ at a force of 20 kg (44 lbs, 196 N).
Washer fluid
Checking the washer fluid level
Check the fluid level in the washer fluid
reservoir and add fluid if necessary.
Plain water may be used if washer fluid is
not available. However, use washer so ...
Fuel filter (for Diesel)
Draining water from fuel filter
The fuel filter for diesel engine plays an
important role of separating water from
fuel and accumulating the water in its
bottom.
If water accumulates in the fu ...
Kia Cee'd JD Service Manual: Exhaust Manifold Repair procedures
Removal and Installation
1.
Remove the engine cover.
2.
Disconnect the battery negative terminal.
3.
Disconnect the front and rear oxygen sensor connectors (A).
4.
Re ...
Kia Cee'd JD Service Manual: Water pump Repair procedures
Removal
1.
Loosen the drain plug (A), and drain the engine coolant. Remove the
radiator cap to drain with speed.
System is under high pressure when t ...
