Kia Cee'd: Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic diagrams
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Purge Control Solenoid Valve (PCSV) Schematic diagrams

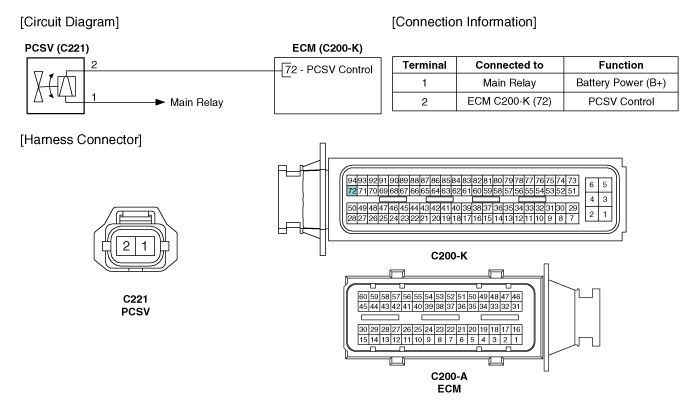

| Circuit Diagram |
Purge Control Solenoid Valve (PCSV) Specifications
Specification
Item
Specification
Coil Resistance (Ω)
22.0 ~ 26.0 [20°C(68°F)]
...
Purge Control Solenoid Valve (PCSV) Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the PCSV connector.
3.
Measure resistance betwe ...
