Kia Cee'd: Brake System / Rear Disc Brake Components and components location
Kia Cee'd JD Service Manual / Brake System / Brake System / Rear Disc Brake Components and components location

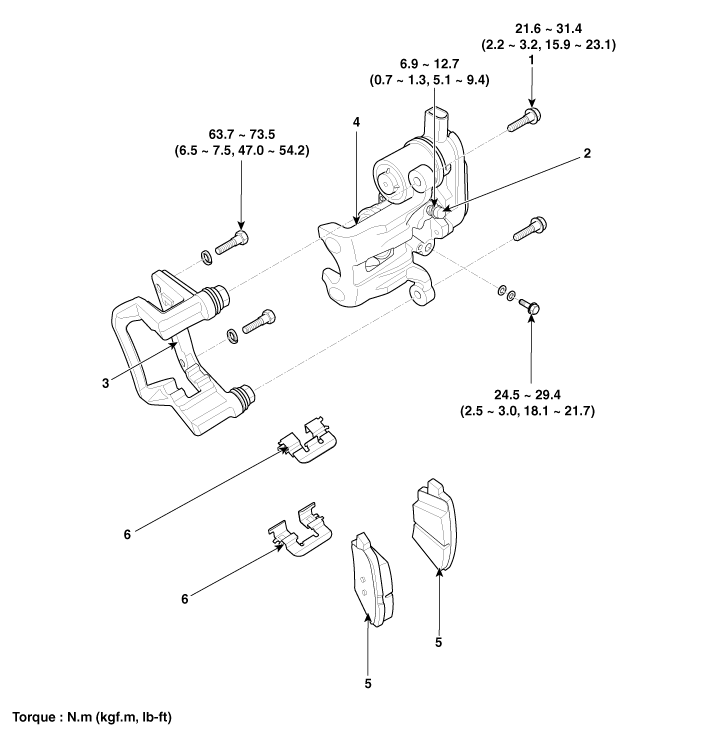

| Components [Without EPB] |
| 1. Guide rod bolt 2. Bleed screw 3. Caliper carrier |
4. Caliper body 5. Brake pad 6. Pad retainer |
| Components [With EPB] |
| 1. Guide rod bolt 2. Bleed screw 3. Caliper carrier |
4. Caliper body 5. Brake pad 6. Pad retainer |
