Kia Cee'd: Rear Suspension System / Rear Shock Absorber Components and components location
Kia Cee'd JD Service Manual / Suspension System / Rear Suspension System / Rear Shock Absorber Components and components location

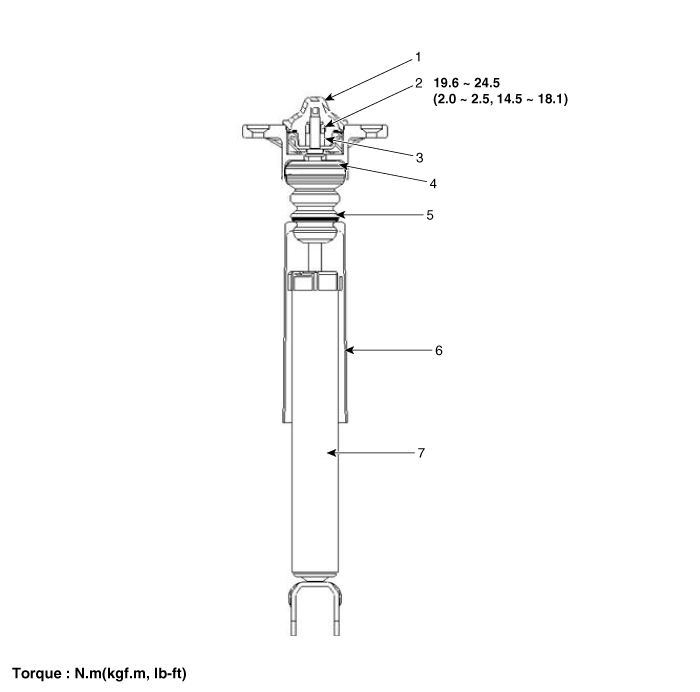

| Components |
| 1. Rear insulator cover 2. Locking nut 3. Plpe 4. Rear bracket assembly |
5. Bumper rubber 6. Protector 7. Rear shock absorber assembly |
Components and components location
Components Location
1. Rear shock absorber
2. Rear trailing arm
3. Rear upper arm
4. Rear stabilizer bar
5. Rear lower arm
6. Rear assist arm ...
