Kia Cee'd: Fuses and Relays / Relay Box (Passenger Compartment) Repair procedures

Kia Cee'd JD Service Manual / Body Electrical System / Fuses and Relays / Relay Box (Passenger Compartment) Repair procedures

Fuse Inspection
1.
Be sure there is no play in the fuse holders, and that the fuses are held securely.
2.
Be sure the fuse capacities for each circuit correct.
3.
Check whether or not the fuse is broken.
If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always determine why the fuse blew first and completely eliminate the problem before installing a new fuse.

The fuse with a capacity of more than normal value should not be used.
Inspection
1.
The SJB can be diagnosed by using the GDS. The SJB communicates with the GDS which then displays inputs and outputs along with codes.
2.

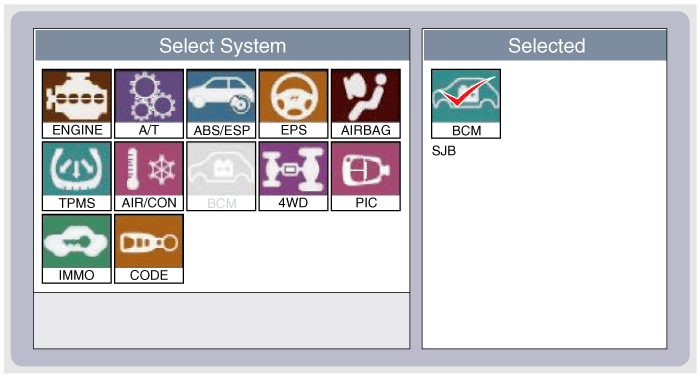

To diagnose the SJB function, select the vehicle model, BCM and SJB.

3.

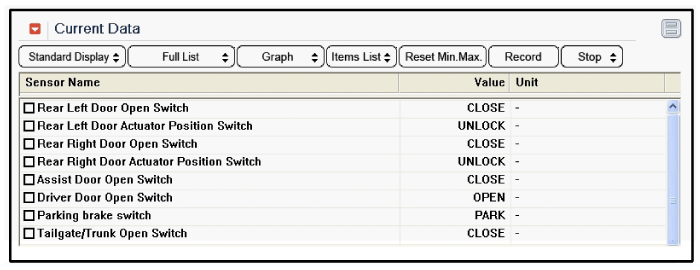

To consult the present input/out value of SJB, "Current DATA". It provides information of SJB input/output conditions.

4.

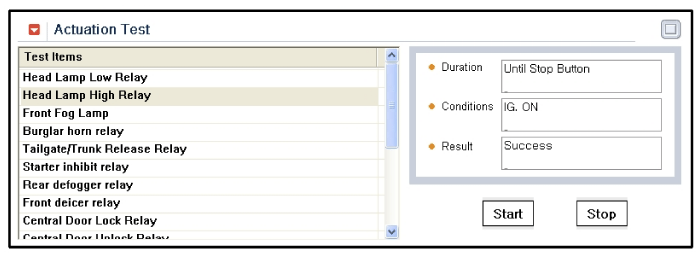

To perform functional test on SJB outputs, select "Actuation Test"

Removal
Passenger Compartment Junction Box (SJB)
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.
Disconnect the connectors from the fuse side of the smart junction box.
4.
Remove the smart junction box after loosening the mounting nuts and bolt.

5.
Disconnect the connectors from the back side of the smart junction box.
Installation
1.
Install the smart junction box.
2.
Install the crash pad lower panel.
3.
Check that all system operates normally.
