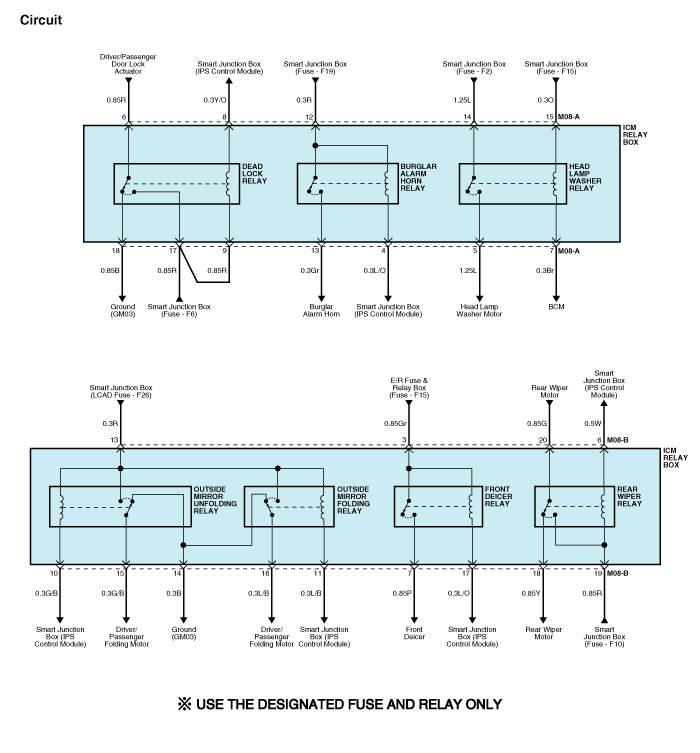

Kia Cee'd: Fuses and Relays / ICM (Integrated Circuit Module) Relay Box Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Fuses and Relays / ICM (Integrated Circuit Module) Relay Box Components and components location

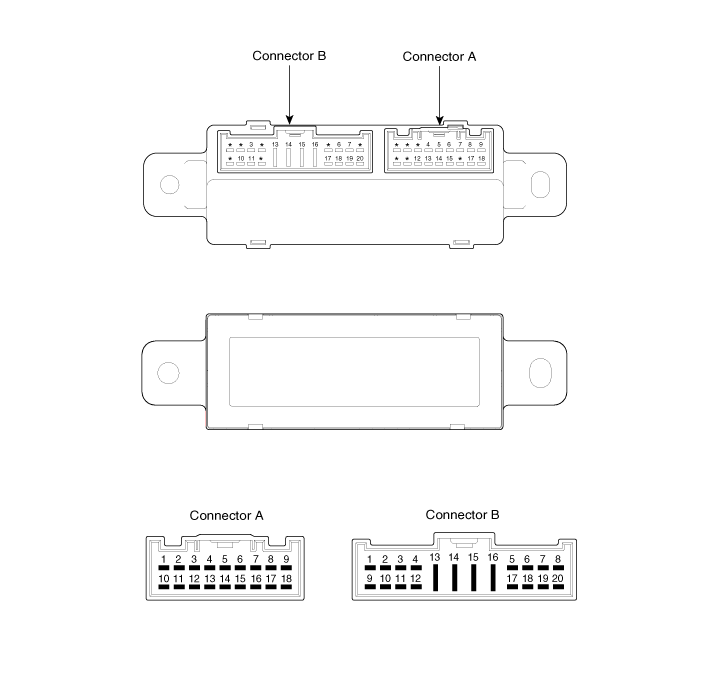

| Component Location |
Relay Box (Passenger Compartment) Repair procedures
Fuse Inspection
1.
Be sure there is no play in the fuse holders, and that the fuses are
held securely.
2.
Be sure the fuse capaciti ...
ICM (Integrated Circuit Module) Relay Box Description and operation
Description
The ICM is united many kinds of relays and installed inside the driver crash
pad.
...
