Kia Cee'd: Smart Parking Assist System (SPAS) / Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Smart Parking Assist System (SPAS) / Schematic diagrams

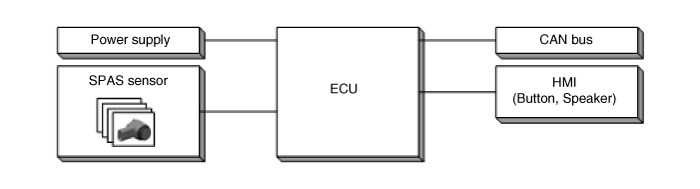

| Block Diagram |

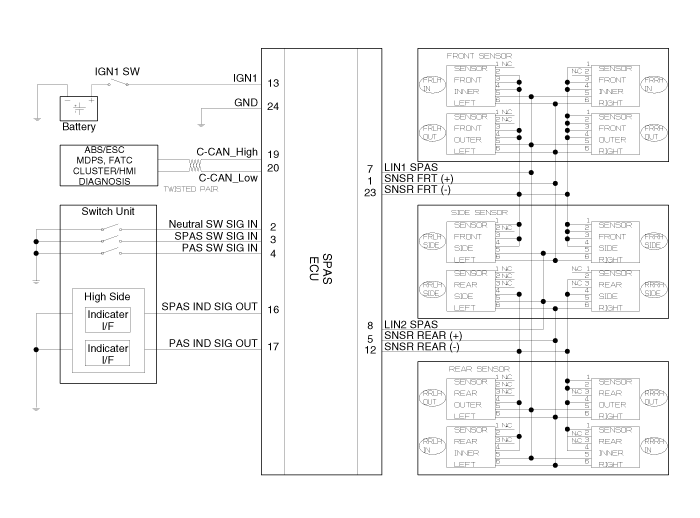

| Circuit Diagram |
Components and components location

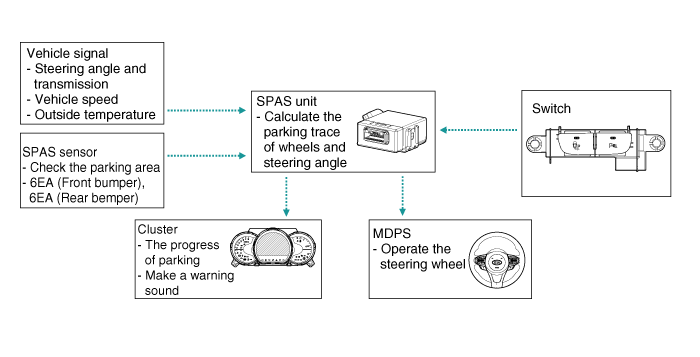

Component Location
Item
Description
SPAS
SPAS unit
(ECU)
• Calculate the parking trace of wheels
...
Description and operation
Description
Operation procedure (Serial/parallel parking)
1.
Select the parking mode during checking the message on the instrument
panel through operating the ...
