Kia Cee'd: Seat Electrical / Seat Heater Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Seat Electrical / Seat Heater Schematic diagrams

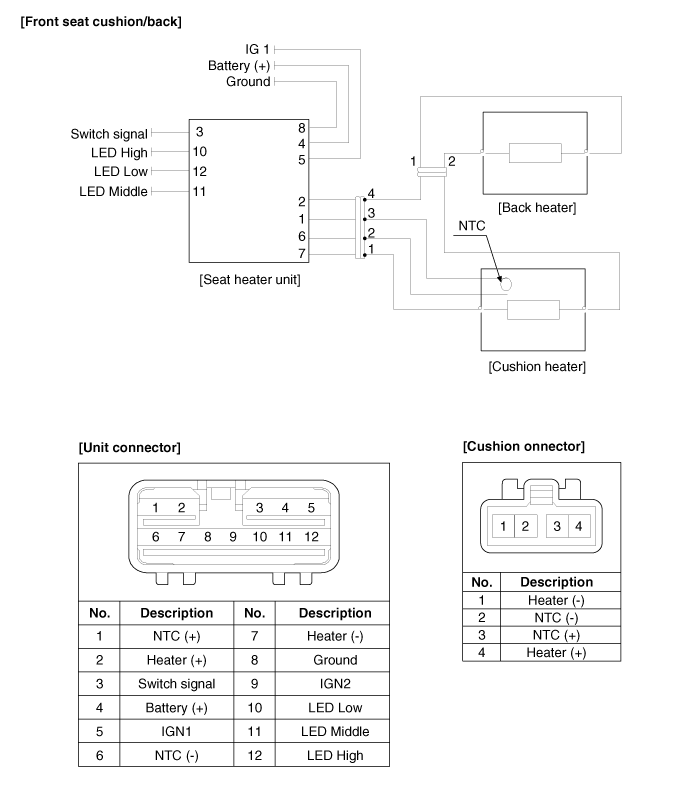

| Circuit Diagram |
Seat Heater Components and components location
Component Location
...
Seat Heater Repair procedures
Inspection
First Seat Heater
1.
Check for continuity and measure the resistance between terminals.
No.
...
