Kia Cee'd: Manual Transaxle Control System / Shift Lever Components and components location
Kia Cee'd JD Service Manual / Manual Transaxle System / Manual Transaxle Control System / Shift Lever Components and components location

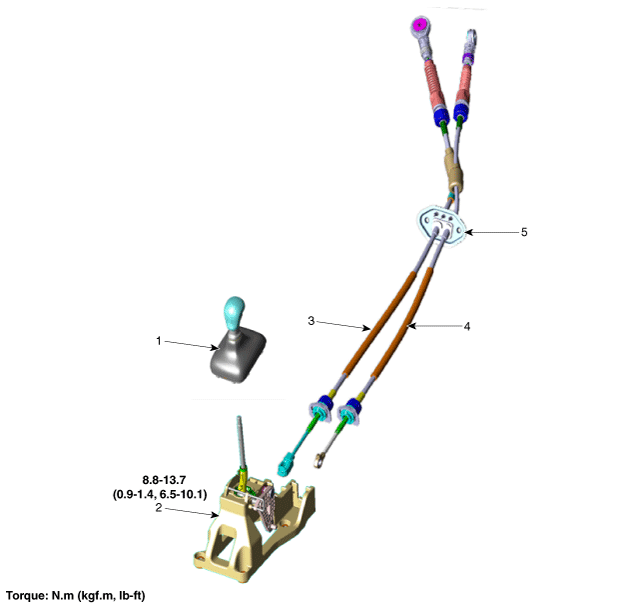

| Components |
|
1. Knob & Boots 2. Shift lever assembly |
3. Shift cable 4. Select cable 5. Control cable retainer |
Shift Lever Repair procedures
Removal
1.
Disconnect the battery negative (-) cable.
2.
Remove the gear boots (A) and then remove the shift lever knob (B) by
rota ...
