Kia Cee'd: Dual Clutch Transmission Control System / Shift Lever Components and components location
Kia Cee'd JD Service Manual / Dual Clutch Transmission(DCT) System / Dual Clutch Transmission Control System / Shift Lever Components and components location

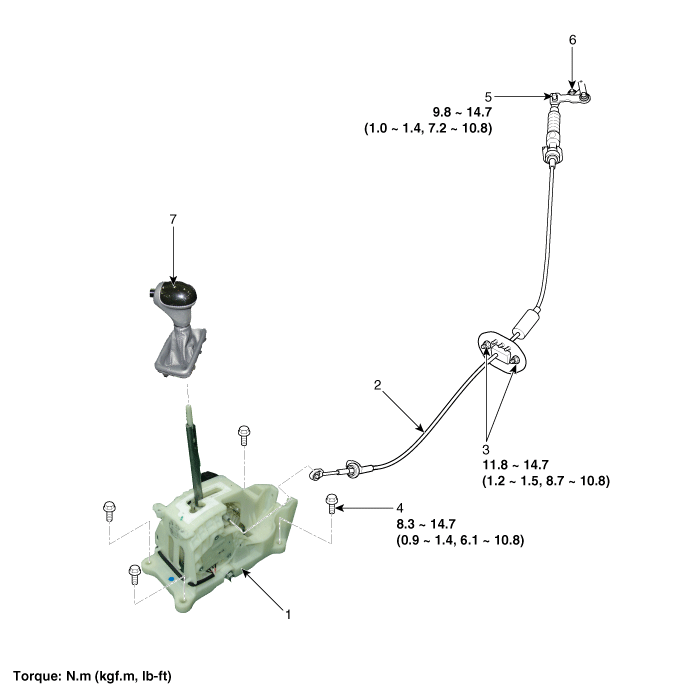

| Components |
| 1. Shift lever assembly
2. Shift cable assembly 3. Retainer |
4. Bolt 5. Nut 6. Manual control lever |
