Kia Cee'd: Smart Key System / Smart Key Unit Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Smart Key System / Smart Key Unit Schematic diagrams

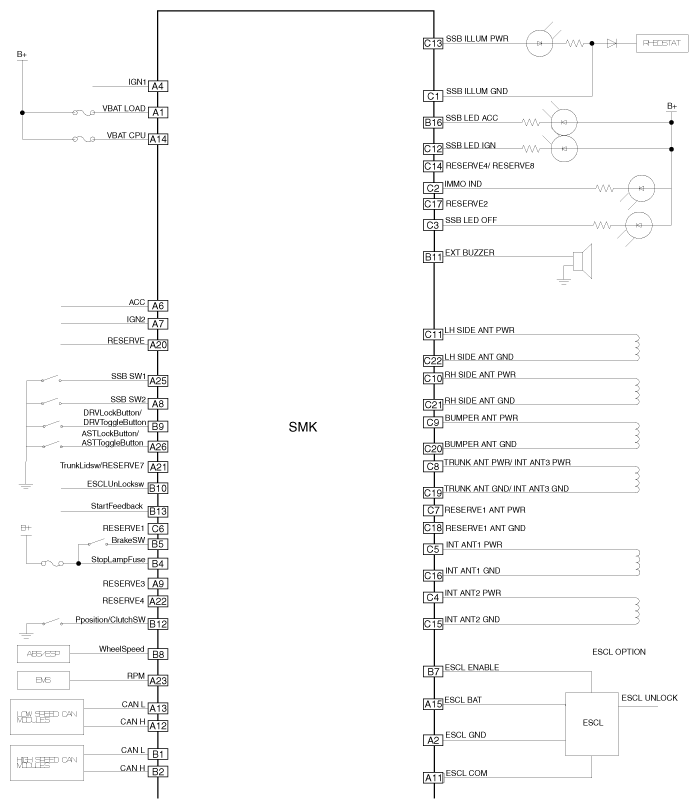

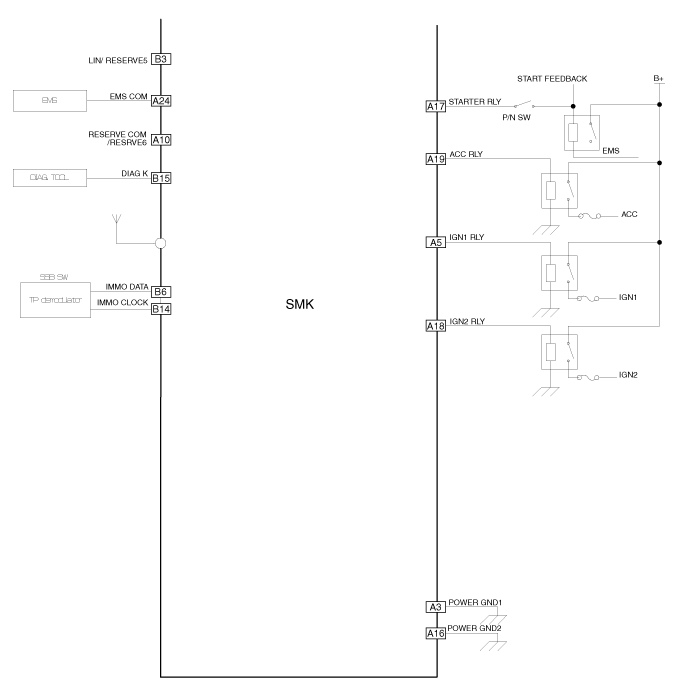

| Circuit Diagram |
Smart Key Unit Components and components location
Component
Connector Pin Information
No.
Connector A(26 pins)
No.
Connector B(16 pins)
No.
Connecto ...
Smart Key Unit Repair procedures
Inspection
Smart Key Unit
–
Refer to Smart key system - "Smart key Diagnostic"
Smart Key Switch
–
Refer to Smart k ...
