Kia Cee'd: Manual Transaxle System / Special service tools
Kia Cee'd JD Service Manual / Manual Transaxle System / Special service tools
| Special Service Tools |
|
Tool Name / Number |
Illustration |
Description |
|
Engine support fixture (bar) 09200-3N000 |
|
Used for holding engine assembly when removing / installing transaxle
Used with the supporter (09200-2S000) |
|
Engine support fixture (supporter) A: 09200-2S000 B: 09200-2S100 C: 09200-2S200 |
|
Used for holding engine assembly when removing / installing transaxle
Used with the bar (09200-3N000) |
|
Engine support fixture (adapter) 09200-4X000 |
|
Used for holding engine assembly when removing / installing transaxle
Used with the bar (09200-3N000) and supporter (09200-2S000) |
|
Oil seal installer A: 09431-26100 (Installer) B: 09231-H1100 (Handle) |
|
Used for installing differential oil seal |

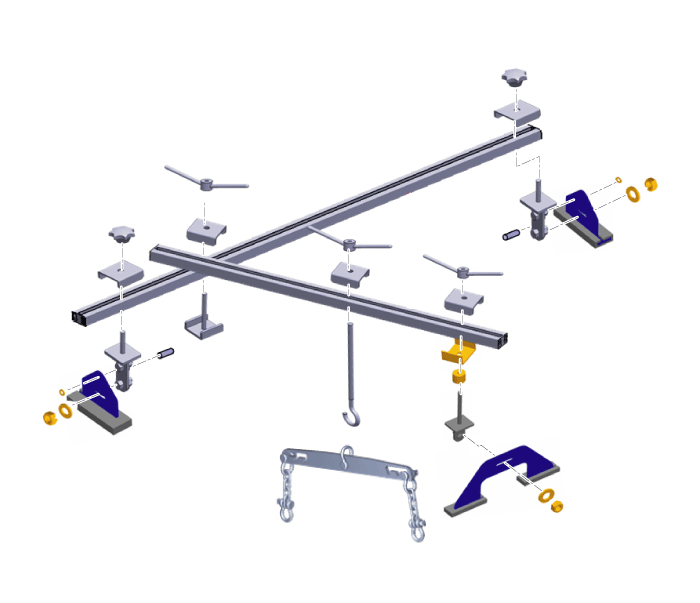

Engine support fixture assembly drawing
