Kia Cee'd: Starting System / Starter Components and components location
Kia Cee'd JD Service Manual / Engine Electrical System / Starting System / Starter Components and components location

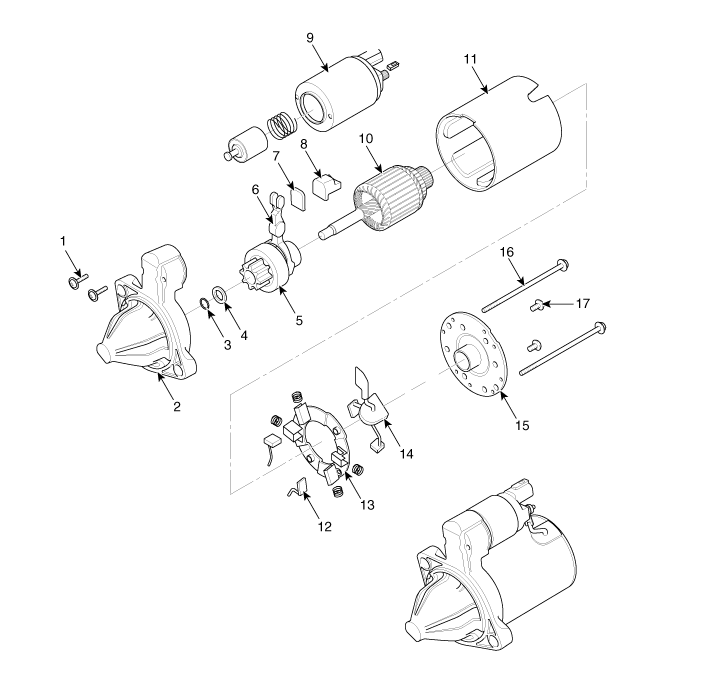

| Components |
| 1. Screw
2. Front housing 3. Stop ring 4. Stopper 5. Overunn clutch 6. Lever 7. Lever plate 8. Lever packing 9. Magnet switch assembly |
10. Armature
assembly 11. Yoke assembly 12. Brush (-) 13. Brush holder 14. Brush (+) 15. Rear bracket 16. Through bolt 17. Screw |
Starter Specifications
Specification
Starter [Non-ISG type]
Item
Specification
Rated voltage
12 V, 1.2 kW
The number of pini ...
Starter Schematic diagrams
Circuit Diagram
...
