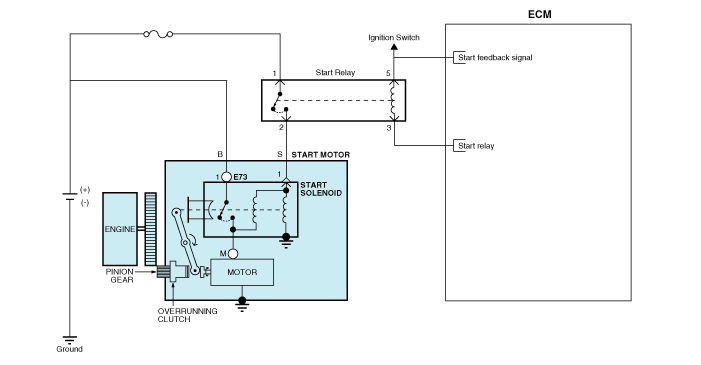

Kia Cee'd: Starting System / Starter Schematic diagrams

Starter Components and components location

Components   1. Screw 2. Front housing 3. Stop ring 4. Stopper 5. Overunn clutch 6. Lever 7. Lever plate 8. Lever packing 9. Magnet s ...

Starter Repair procedures

Removal 1. Disconnect the battery negative terminal. 2. Remove the air duct and air cleaner assembly. (Refer to Engine Mechanical ...
