Kia Cee'd: Smart Parking Assist System (SPAS) / System malfunction
Kia Cee'd JD Owners Manual / Features of your vehicle / Smart Parking Assist System (SPAS) / System malfunction

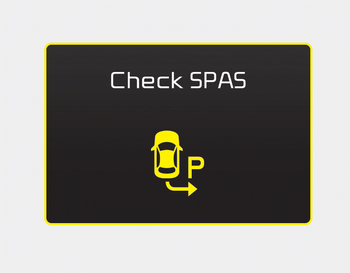

- If there is a problem with the system, when the system is turned on, the above message will appear. Also, the indicator on the button will not light up and a beep sound will be heard 3 times.
- If there is a problem with only the Smart Parking Assist System, the Parking Assist System will operate after 2 seconds.
If you notice any problem, have your vehicle checked by an authorized Kia dealer as soon as possible.
Additional instructions(messages)
When the Smart Parking Assist System
is operating, a message may appear
regardless of the parking order.
The messages will appear according to
the circumstances. Follow the instructions
...
Rearview camera
The rearview camera will activate when
the back-up light is ON with the ignition
switch ON and the shift lever in the R
(Reverse) position.
This system is a supplemental system
that shows ...
