Kia Cee'd: Barrier net (wagon) / To install the barrier net

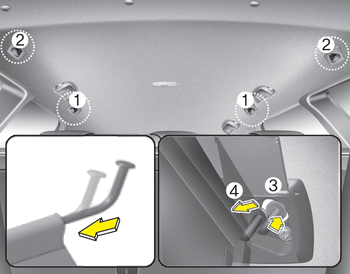

1. Open the cover (if equipped) for the holder position (1) or (2) you want to install.

2. Compress the one side net upper shaft to length direction before insert the net upper shaft into the large hole (3) and then secure by sliding into the small hole (4).

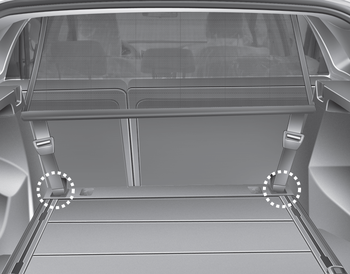

3. Hang the net strap hooks in the corresponding hook holders on the floor behind the front seat or rear seat.

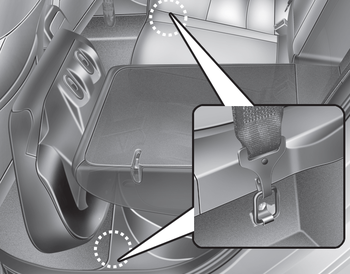

This symbol indicates the position of the hook holders on the floor behind the rear seat.

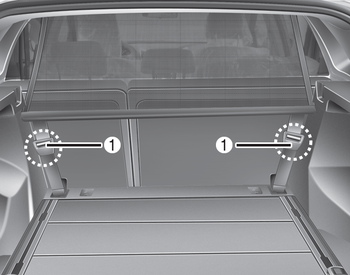

4. Fasten the straps, by using the adjuster (1).

WARNING

WARNING
