Kia Cee'd: Speed limit control system / To set speed limit

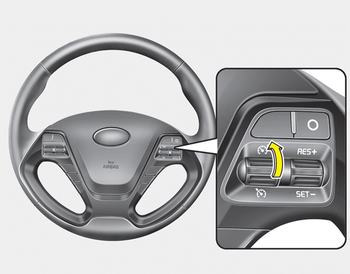

1. Move the lever up (
) on the
steering
wheel, to turn the system on.
The speed limit indicator light will illuminate.
2. Move the lever down (to SET-).

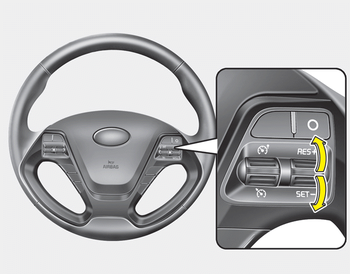

3. Move the lever up (to RES+) or down (to SET-), and release it at the desired speed. Move the lever up (to RES+) or down (to SET-) and hold it. The speed will increase or decrease by 5 km/h (3 mph).
Move the lever up (to RES+) or down (SET-) and release it immediately. The speed will increase or decrease by 1 km/h.

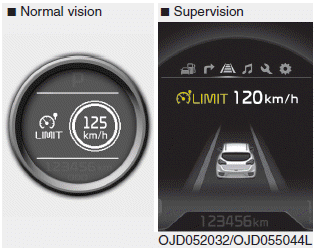

The set speed limit will display on the instrument cluster.
The set speed limit will be displayed.
To drive over the preset speed limit you must depress hard on the accelerator pedal (more than approximately 80%) until the kick down mechanism works with a clicking noise. Then the set speed limit will blink and chime will sound until you return the vehicle speed within the speed limit.
✽ NOTICE
- Depressing the accelerator pedal less than approximately 50%, the vehicle will not speed over the preset speed limit but maintain the vehicle speed within the speed limit.
- A clicking noise heard from the kick down mechanism by depressing the accelerator pedal fully is a normal condition.
Speed limit control switch
O: Cancels set speed limit.
: Turns speed limit control
system on
or off.
RES+: Resumes or increases speed limit
control speed.
SET-: Sets or decreases speed limit control
speed. ...
To turn off the speed limit control,
do one of the following
Move the lever up ().
Move the lever down ().
(If you
move the lever down, the cruise system
will turn on)
Turn the ignition off.
If you press the O (CANCEL) button
once, the se ...
