Kia Cee'd: Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic diagrams
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve Schematic diagrams

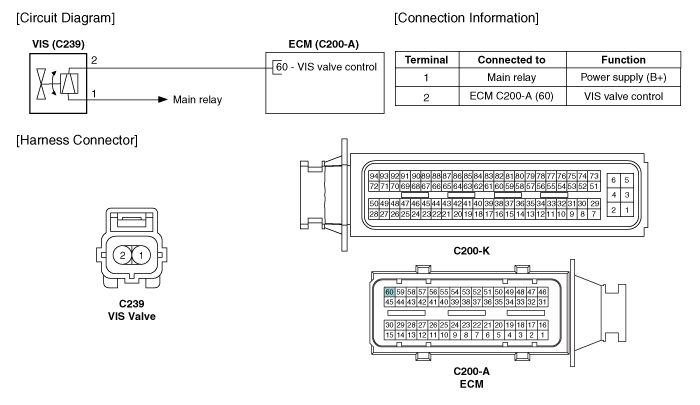

| Circuit Diagram |
Variable Intake Solenoid (VIS) Valve Specifications
Specification
Item
Specification
Coil resistance (Ω)
30.0 ~ 35.0 [20°C(68°F)]
...
Variable Intake Solenoid (VIS) Valve Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the VIS valve connector.
3.
Measure resistance ...
