Kia Cee'd: Features of your vehicle / Windows

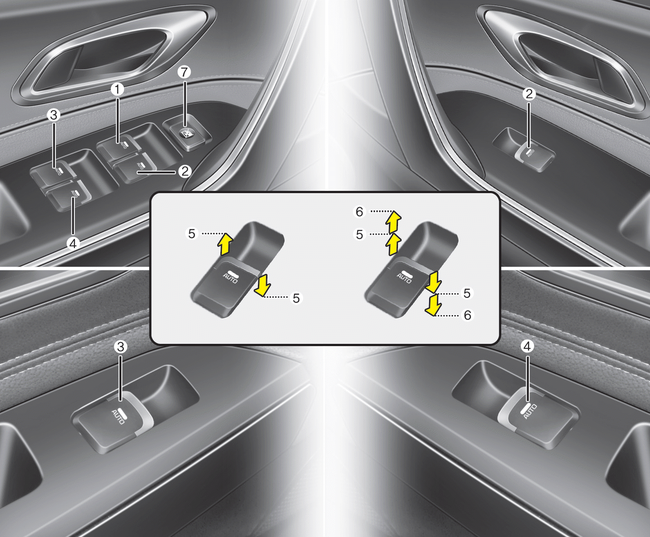

(1) Driver’s door power window switch
(2) Front passenger’s door power window
switch
(3) Rear door (left) power window
switch* (for 5 Door and wagon)
(4) Rear door (right) power window
switch* (for 5 Door and wagon)
(5) Window opening and closing
(6) Automatic power window up*/down*
(7) Power window lock switch*
*: if equipped
✽ NOTICE
In cold and wet climates, power windows may not work properly due to freezing conditions.
Emergency tailgate safety release
❈ The actual luggage room in the vehicle may
differ from the illustration.
Your vehicle is equipped with the emergency
tailgate safety release lever located
on the bottom of the tailgate. W ...
Power windows
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls the door’s window. The driver’s
door has a master power windo ...
