Kia Rio: ABS(Anti-Lock Brake System) / ABS Control Unit

Kia Rio 2017-2020 YB Service Manual / Brake System / ABS(Anti-Lock Brake System) / ABS Control Unit

Components and components location

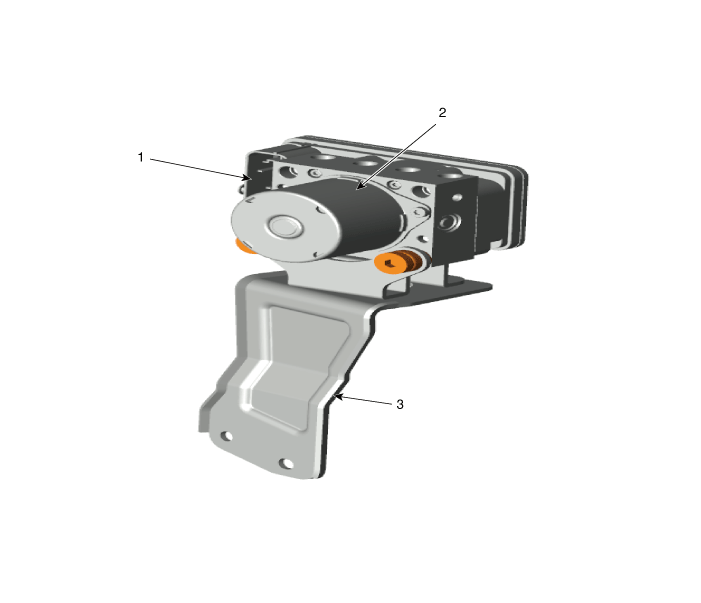

Components

1. ABS control module connector
2. ABS control module

3. ABS bracket

Repair procedures

Removal

1.	Turn ignition OFF and disconnect the negative (-) battery cable.

Remove the brake fluid from the master cylinder reservoir with a syringe.

•	Be sure to completely remove foreign substances from around brake fluid reservoir and cap before opening the reservoir cap. Otherwise, it may cause contamination of brake fluid and deterioration in braking performance.

•	Do not spill brake fluid on the vehicle as it may damage the paint. If brake fluid comes in contact with the paint, wash off immediately with water.

3.	Pull up the lock of the ABS connector (A) and then disconnect the connector.

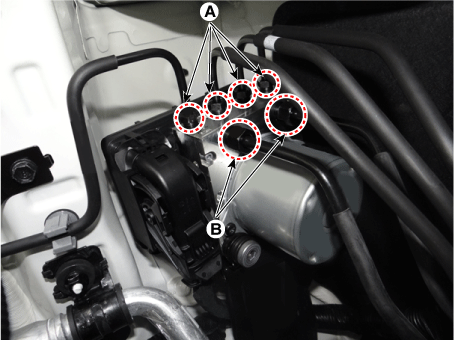

Disconnect the brake tubes from the ABS by unlocking the nuts counterclockwise with a wrench.

Tightening torque :

A : 13.7 - 16.7 N·m (1.4 - 1.7 kgf·m, 10.1 - 12.3 lb·ft)

B : 13.7 - 16.7 N·m (1.4 - 1.7 kgf·m, 10.1 - 12.3 lb·ft)

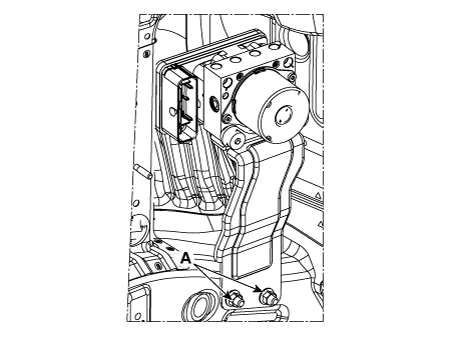

Loosen the ABS control module bracket nuts (A), and then remove the ABS control module bracket.

Tightening torque:

16.7 - 25.5 N·m (1.7 - 2.6 kgf·m, 12.3 - 18.8 lb·ft)

•	Never attempt to disassemble the ABS.

•	The ABS must be transported and stored in.

•	Never shock to the ABS.

Installation

1.	Install in the reverse order of removal.

2.	After installation, bleed the brake system. (Refer to Brake system - "Brake System")

3.	Conduct the Variant coding.

4.	Conduct the Auto Detected Sensor Calibration.

5.	Conduct the Longitudinal G Sensor Calibration.

Diagnostic procedure by using diagnostic device

Perform diagnostic procedure by using diagnostic device as shown below:

Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.

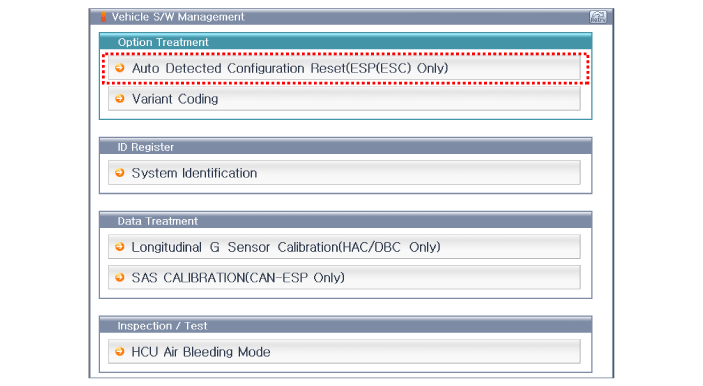

Select the "vehicle model" and "ABS/ESC" on GDS vehicle selection screen, then select OK.

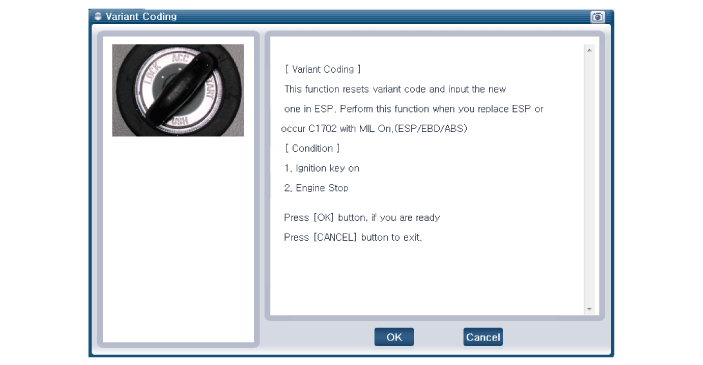

[Variant Coding]

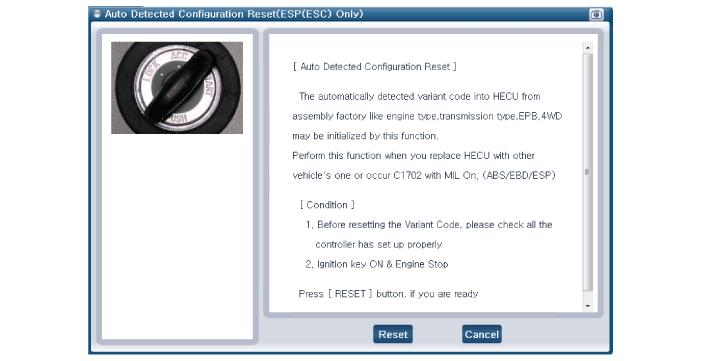

[Auto Detected Sensor Calibration]

[Longitudinal G Sensor Calibration]
