Kia Rio: ABS(Anti-Lock Brake System) / Front Wheel Speed Sensor
Components and components location

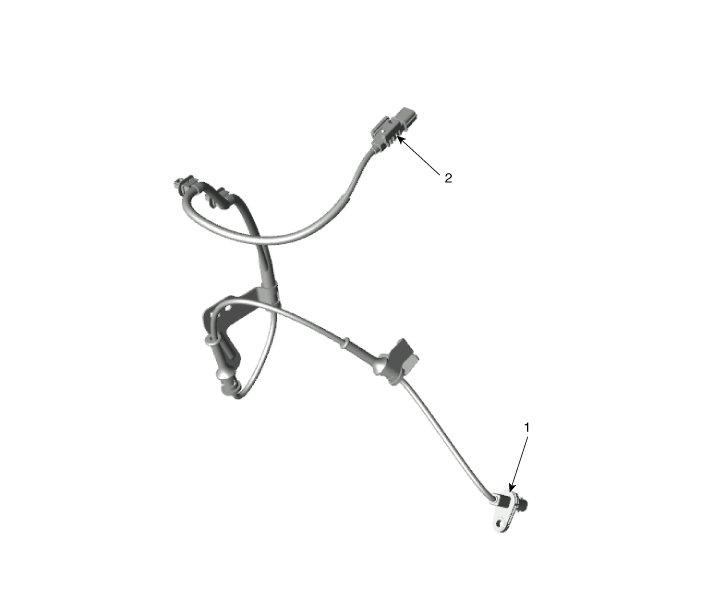

| Components |
| 1. Front wheel speed sensor connector
|
2. Front wheel speed sensor
|
Repair procedures
| Removal |
| 1. |

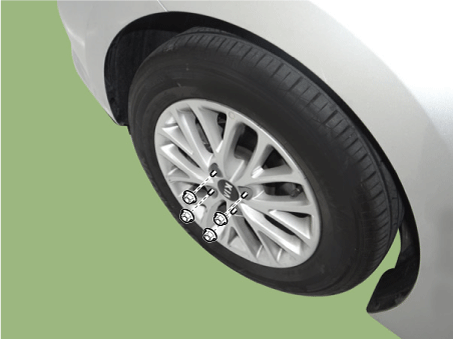

Remove the front wheel & tire.
|
| 2. |

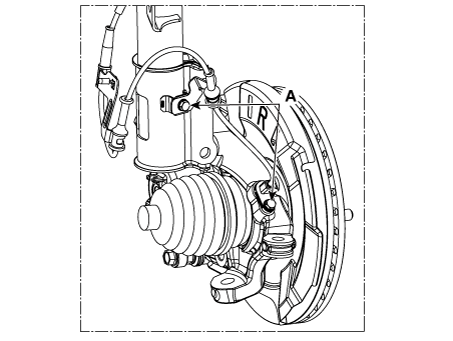

Loosen the bolt (A) and then disconnect the wheel speed sensor.
|
| 3. |
Remove the front wheel guard. (Refer to Body - "Front Wheel Guard") |
| 4. |
Disconnect the wheel speed sensor connector (A).
|
| 5. |
Install in the reverse order of removal. |
| Inspection |
| 1. |

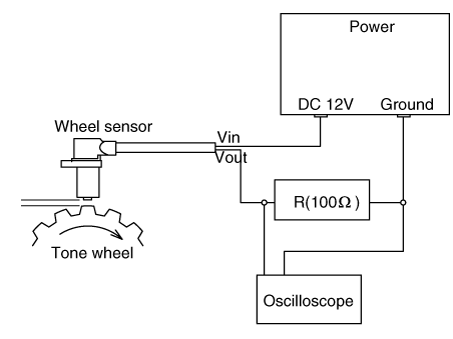

Measure the output voltage between the terminal of the wheel speed sensor and the body ground.
|
| 2. |
Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.
|
ABS Control Unit
Components and components location
Components
1. ABS control module connector
2. ABS control module
3. ABS bracket
Repair procedures
Remo ...
Rear Wheel Speed Sensor
Components and components location
Components
Drum type
Disc type
Repair procedures
Removal
1.
Remove the rear wheel & tire.
...
