Kia Rio: Engine Oil and Filter / Manual Transaxle Oil
Repair procedures
| Inspection |
Manual Transaxle Oil Level Check
| 1. |
Stop the engine and then raise the vehicle using the lift. |
| 2. |

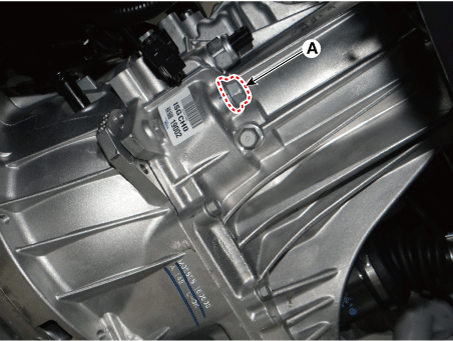

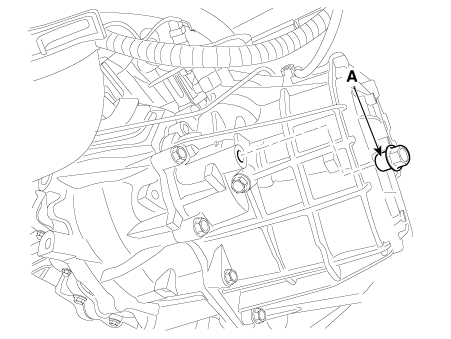

Remove the oil filler plug (A). [Kappa 1.0 T-GDI, Kappa 1.4 MPI]
[Kappa 1.2 MPI]
[U-2 1.4 TCI]
|
| 3. |

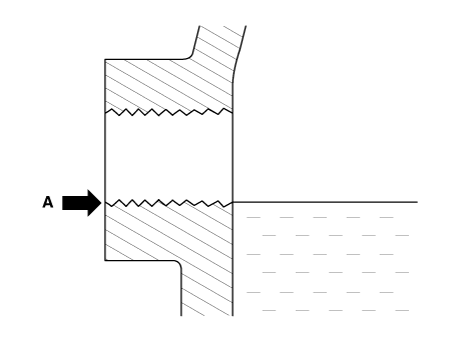

Check the condition of the oil and make sure that it is at the proper level (A).
|
| 4. |
Install the oil filler plug (A).
[Kappa 1.0 T-GDI, Kappa 1.4 MPI]
[Kappa 1.2 MPI]
[U-2 1.4 TCI]
|
Fuel Lines, Hoses and Connections
Repair procedures
Inspection
Visually check the fuel lines for cracks, leakage, loose connections, deformation
or tank band looseness. ...
Spark Plug
Repair procedures
Inspection
[On vehicle inspection]
1.
Accelerate the engine to about 3,000 rpm 3 times or more.
2.
Remove the spark p ...
