Kia Rio: Maintenance / Engine Oil and Filter
Repair procedures
Engine Oil Level
|
Be sure that the vehicle is on level ground.
|
| 1. |
Warm up and stop the engine, and then wait for 5 minutes.
|
| 2. |
Turn the engine off and wait for a few minutes (about 5 minutes) for
the oil to return to the oil pan.
|
| 3. |
Pull the dipstick out, wipe and re-insert it fully.
|
| 4. |
Check that the oil level is between the "L" level mark and "F" level
mark on the engine oil level gauge.
|
| 5. |
If the level is low, check for leakage and add oil up to the full level
mark.
|
Use a funnel to help prevent oil from being spilled on engine
components.
|
|
Do not fill the engine with oil to above the full level mark.
|
|
Engine Oil Appearance
| 1. |
Check engine oil for white turbidity or heavy contamination.
|
| 2. |
If engine oil becomes turbid and white, it is highly probable that it
is contaminated with engine coolant.
Repair or replace damaged parts.
|
| • |
Prolonged and repeated contact with mineral oil will result in
the removal of natural fats from the skin, leading to dryness, irritation
and dermatitis. In addition, used engine oil contains potentially
harmful contaminants which may cause skin cancer.
|
| • |
Exercise caution in order to minimize the length and frequency
of contact of your skin to used oil. Wear protective clothing and
gloves. Wash your skin thoroughly with soap and water, or use water-less
hand cleaner, to remove any used engine oil. Do not use gasoline,
thinners, or solvents.
|
| • |
In order to preserve the environment, used oil and used oil filter
must be disposed of only at designated disposal sites.
|
|
[Kappa 1.0 T-GDI, 1.2
MPI, 1.4 MPI]
| 1. |
Park the car on level ground.
|
| 2. |
Drain the engine oil.
| (1) |
Remove the oil filler cap.
|
| (2) |

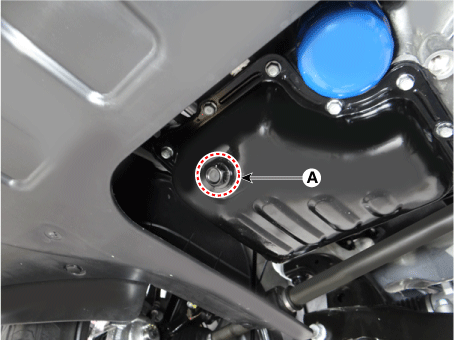

Remove the oil drain plug (A) and drain the oil into a container.
|
|
| 3. |
Replace the oil filter.
| (1) |

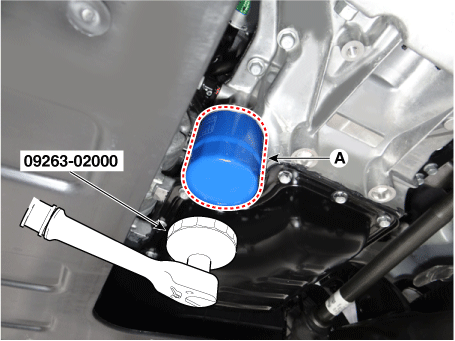

Using the SST (09263-02000), remove the oil filter (A).
|
| (2) |
Check and clean the oil filter installation surface.
|
| (3) |
Check that the part number of the new oil filter is the same
as the previous one.
|
| (4) |
Apply clean engine oil to the gasket of a new oil filter.
|
| (5) |
Lightly screw the oil filter into place, and tighten it until
the gasket contacts the seat.
|
| (6) |
Tighten it to the torque below.
|
Tightening torque :
11.8 - 15.7 N·m (1.2 - 1.6 kgf·m, 8.7 - 11.6 lb·ft)
|
|
|
| 4. |
Install the oil drain plug with a new gasket.
|
Tightening torque :
34.3 - 44.1 N·m (3.5 - 4.5 kgf·m, 25.3 - 32.5 lb·ft)
|
|
| 5. |
Fill with new engine oil, after removing the engine oil level gauge.
|
Capacity
[Kappa 1.0 T-GDI]
Total :
3.9 L (4.12 US qt, 3.43 lmp qt)
Oil pan :
3.3 L (3.49 US qt, 2.90 lmp qt)
Drain and refill including oil filter :
3.6 L (3.80 US qt, 3.17 lmp qt)
[Kappa 1.2 MPI, 1.4 MPI]
Total :
3.8 L (1.00 U.S.gal., 4.02 U.S.qt., 3.34 lmp.qt.)
Oil pan :
3.3 L (0.87 U.S.gal., 3.48 U.S.qt., 2.90 lmp.qt.)
Drain and refill including oil filter :
3.5 L (0.92 U.S.gal., 3.70 U.S.qt., 3.08 lmp.qt.)
|
|
| 6. |
Install the oil filler cap.
|
| 7. |
Start engine and check for oil leaks.
|
| 8. |
Recheck the engine oil level.
|
| 9. |
To reset the service interval to the recommended mileage, refer to the
service mode section in the owner's manual for procedure (if applicable).
|
[U-2 1.4 TCI]
| 1. |
Park the car on level ground.
|
| 2. |
Drain the engine oil.
| (1) |
Remove the oil filler cap.
|
| (2) |
Loosen the oil filter cap slowly until its o-ring comes out.
When doing this, be careful as oil may overflow.
|
| (3) |
Remove the oil drain plug, and drain the oil into a container.
|
|
| 3. |

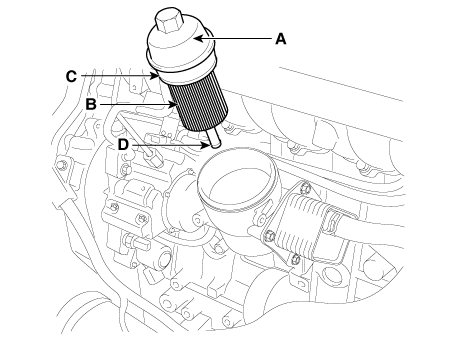

Replace the oil filter (B).
| (1) |
Remove the oil filter upper cap (A).
|
| (2) |
Replace the O-ring (C, D) of oil filter cap with a new one.
Inspect the threads and O-ring (C, D). Wipe off the seat on the
oil filter cap, then apply a light coat of oil to the oil filter
upper cap O-ring (C, D).
|
| (3) |
Install the new oil filter by hand to the upper cap.
|
| (4) |
After the rubber seal seats, tighten the oil filter clockwise.
|
Tightening torque :
31.5 - 38.5 N·m (3.2 - 3.9 kgf·m, 23.2 - 28.4 lb·ft)
|
|
|
| 4. |
Refill with engine oil.
| (1) |
Clean and install the oil drain plug with a new gasket.
|
Tightening torque :
34.3 - 44.1 N·m (3.5 - 4.5 kgf·m, 25.3 - 32.5 lb·ft)
|
|
| (2) |
Fill with fresh engine oil.
|
Fill half amount of total oil first and then do the rest
after 1 minute or more.
|
|
Oil Capacity
Total : 5.7 L (1.51 U.S.gal., 6.02 U.S.qt., 5.01 lmp.qt.)
Oil pan : 4.8 L (1.27 U.S.gal., 5.07 U.S.qt., 4.22 lmp.qt.)
Drain and refill including oil filter :
5.3 L (1.40 U.S.gal., 5.60 U.S.qt., 4.66 lmp.qt.)
|
|
| (3) |
Install the oil filler cap.
|
|
| 5. |
Start engine and check for oil leakage.
|
| 6. |
Recheck the engine oil level.
|
| 7. |
To reset the service interval to the recommended mileage, refer to the
service mode section in the owner's manual for procedure (if applicable).
|
