Components and components location

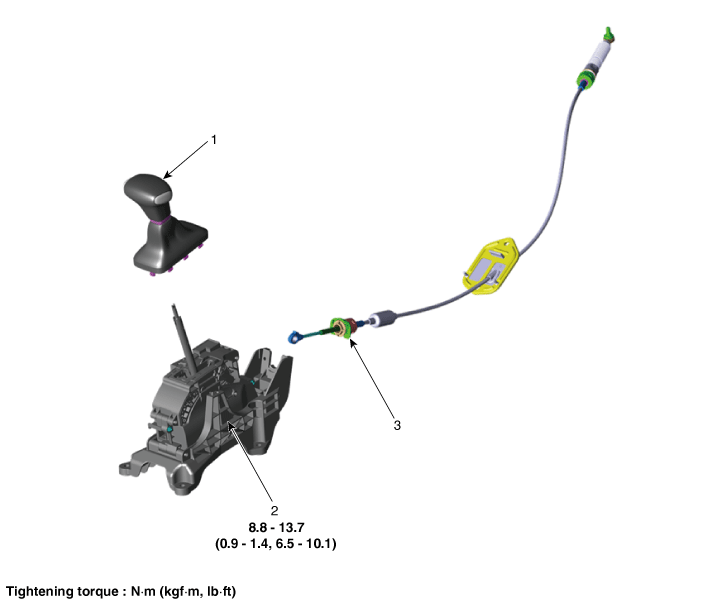

Components

1. Shift lever knob & boots
2. Shift lever assembly

3. Shift cable assembly

Repair procedures

Removal

1.	Shift the gear to "N".

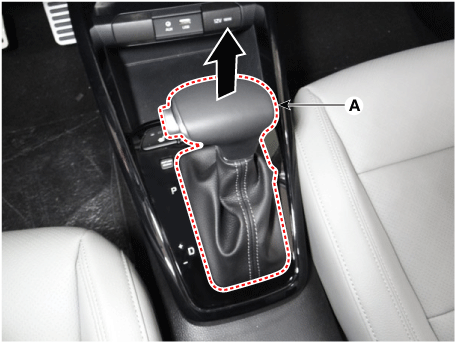

2.	Remove the knob (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

3.	Remove the floor console assembly. (Refer to Body - "Floor Console Assembly")

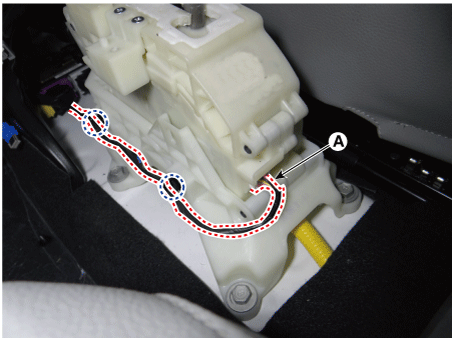

4.	Disconnect the main connector (A) and then remove the wiring mounting clips from the shift lever.

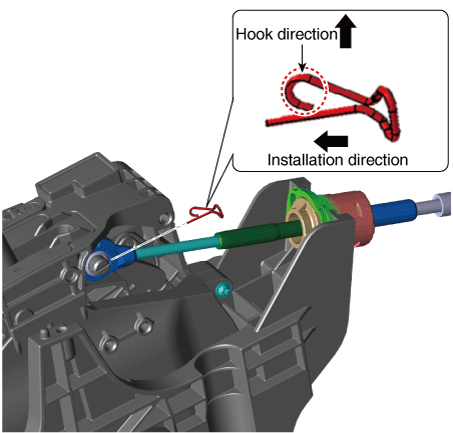

5.	Remove the shift cable from the shift lever pim after removing the snap pin (A).

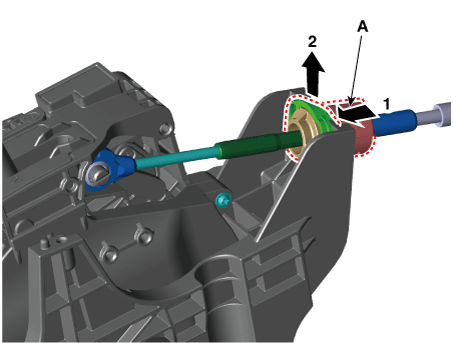

6.	Remove the cable socket (A) from the shift lever.

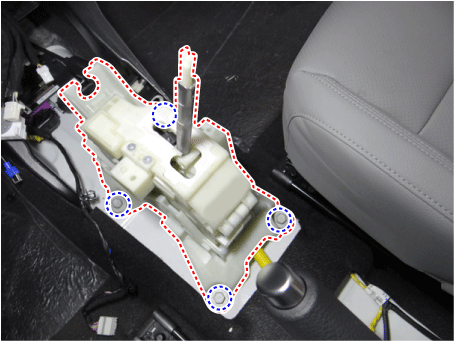

Remove the shift lever after loosening the bolts.

Tightening torque :

8.8 - 13.7 N·m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb·ft)

Installation

1.	Install in the reverse order of removal.

•	Check that the shift lever and manual control lever are placed in the "N" position.

•	Install the shift cable after checking the direction of projection to prevent incorrect assembly.

•	Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
