Kia Rio: Immobilizer System / Antenna Coil

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Immobilizer System / Antenna Coil
Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the crash pad lower panel.

(Refer to Body - "Crash Pad Lower Panel")

3.

Remove the steering column upper and lower shroud panel.

(Refer to Body - "Steering Column Shroud Panel")

4.

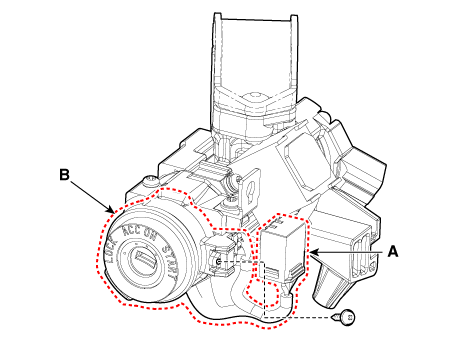

Disconnect the 6P connector (A) of the coil antenna and then remove the antenna coil (B) after loosening a screw.

Installation
1.

Install the coil antenna and connect the 6P connector.

2.

Install the steering column upper and lower shroud panel.

3.

Install the crash pad lower panel.

4.

Connect the negative (-) battery terminal.
