Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the main crash pad assembly. (Refer to Body - "Main Crash Pad Assembly") |
| 3. |

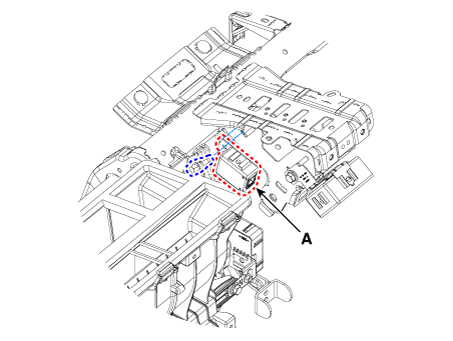

Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening a bolt.
|
| Installation |
| 1. |
Install the immobilizer control unit after connecting the unit connector. |
| 2. |
Install the main crash pad assembly. |
| 3. |
Connect the negative (-) battery terminal. |
Immobilizer System
Schematic diagrams
Circuit Diaram
Description and operation
Description
The immobilizer system will disable the vehicle unless the proper ignition key
is used, in add ...
Antenna Coil
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad ...
