Kia Rio: Blower / Blower Unit
Components and components location

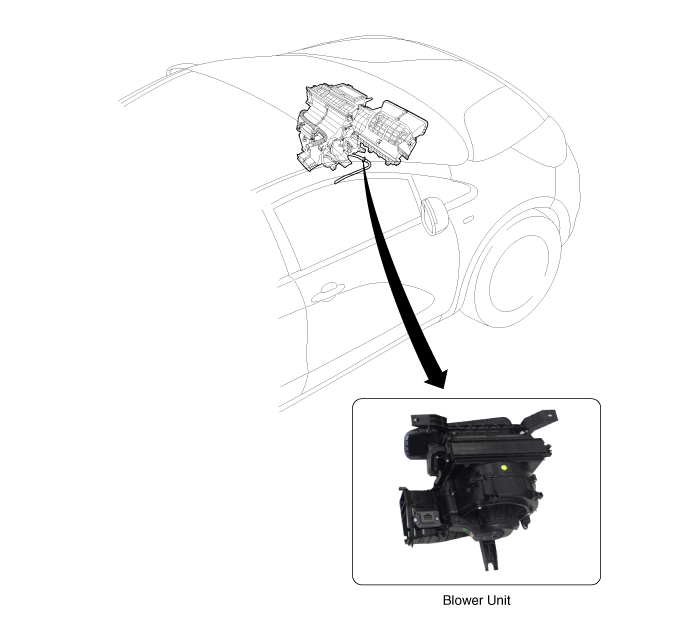

| Component Location |

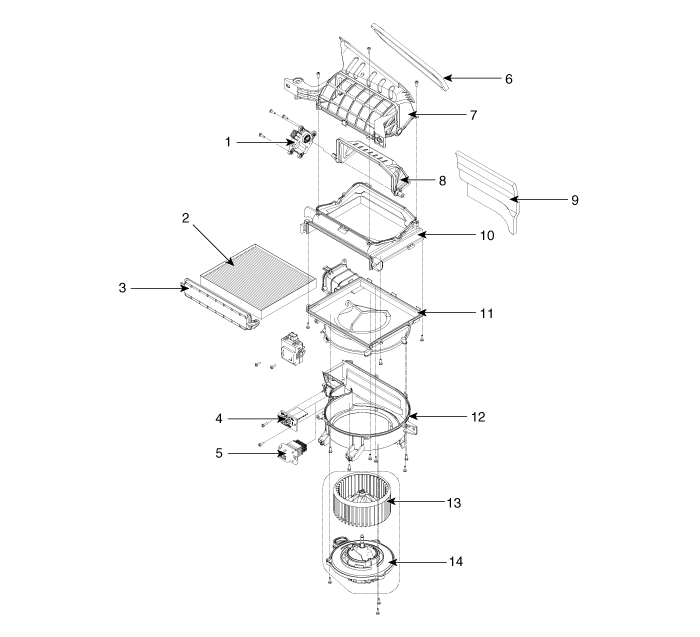

| Components |
| 1. Intake actuator 2. Air filter 3. Air filter cover 4. Resistor 5. Mosfet 6. Intake seal 7. Intake upper cover |
8. Intake door 9. NVH pad 10. Intake lower cover 11. Blower upper cover 12. Blower lower cover 13. Blower fan 14. Blower motor |
Repair procedures
| Replacement |
| 1. |
Remove the heater & blow. (Refer to Heater - "Heater Unit") |
| 2. |

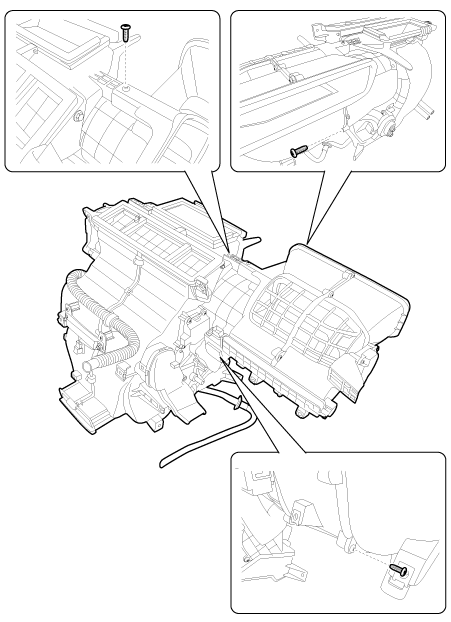

Separate the blower unit from the heater unit after loosening the screws.
|
| 3. |
Installation is the reverse order of removal. |
Blower
...
Blower Motor
Repair procedures
Inspection
1.
Connect the battery voltage and check the blower motor rotation.
2.
If the blower motor does not operate wel ...
