Kia Rio: Blower / Blower Motor
Repair procedures
| Inspection |
| 1. |

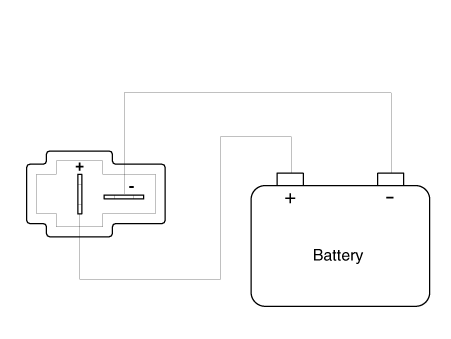

Connect the battery voltage and check the blower motor rotation.
|
| 2. |
If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation. |
| 3. |
If the problem is corrected, replace the blower motor. |
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the crash pad and heater & blower unit assembly. (Refer to HA group – “Heater Unit”) |
| 3. |
Disconnect the blower motor connector (A).
|
| 4. |
Remove the blower motor (A) after loosening the screws.
|
| 5. |
Installation is the reverse order of removal. |
Blower Unit
Components and components location
Component Location
Components
1. Intake actuator
2. Air filter
3. Air filter cover
4. Resistor
5. Mosfet ...
Blower Resistor (MANUAL)
Repair procedures
Inspection
1.
Measure the resistance between the terminals.
2.
The measured resistance is not within specification, the blower ...
