Kia Rio: Blower / Blower Resistor (MANUAL)
Kia Rio 2017-2020 YB Service Manual / Heating,Ventilation, Air Conditioning / Blower / Blower Resistor (MANUAL)
Repair procedures
| Inspection |
| 1. |
Measure the resistance between the terminals. |
| 2. |
The measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)
|
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |

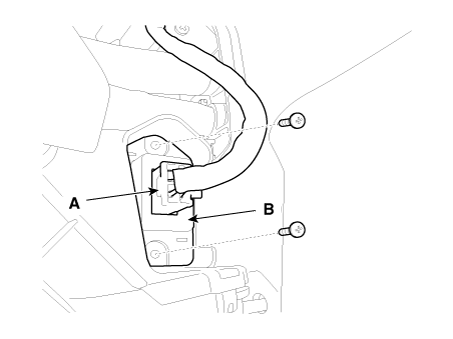

Disconnect the connector (A) and then remove the blower resistor (B) after loosening the mounting screws.
|
| 3. |
Installation is the reverse order of removal. |
