Kia Rio: Brake System / Brake Pedal
Components and components location
| Components |

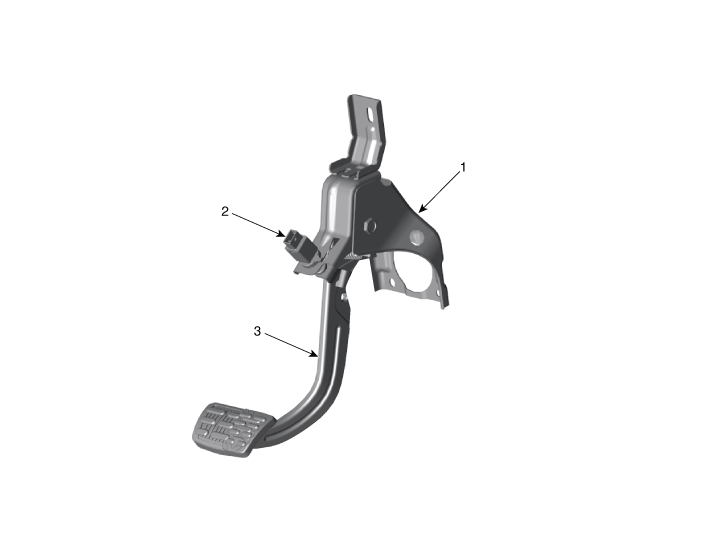

| 1. Brake member assembly 2. Stop lamp switch |
3. Pedal assembly |
Repair procedures
| Removal |
| 1. |
Switch "OFF" ignition and disconnect the negative (-) battery terminal. |
| 2. |
Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") |
| 3. |

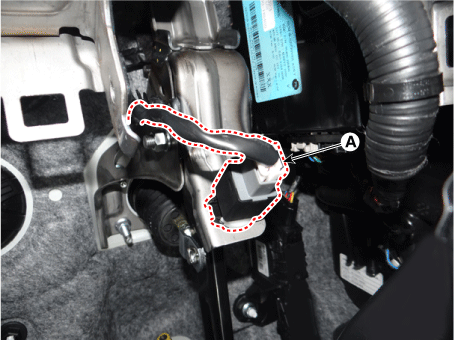

Disconnect the brake switch connector (A).
|
| 4. |

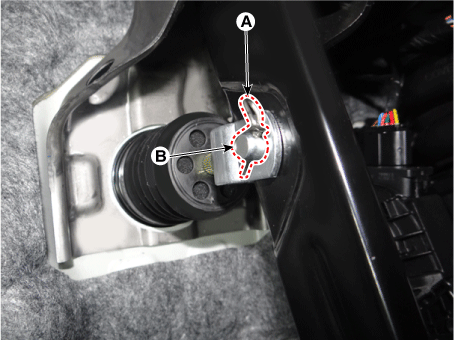

Disconnect the snap pin (A) and clevis pin (B).
|
| 5. |

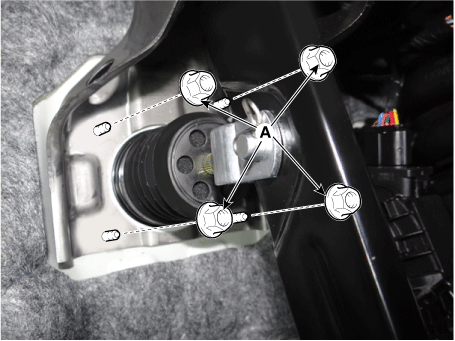

Remove the brake pedal mounting nuts (A).
|
| Inspection |
| 1. |
Check the bushing for wear. |
| 2. |
Check the brake pedal for bending or twisting. |
| 3. |
Check the brake pedal return spring for damage. |
| Installation |
| 1. |
Install in the reverse order of removal |
