Kia Rio: Crash Pad / Cluster Fascia Panel
Components and components location
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Be careful not to bend or scratch the trim and panels.
|
|
| 1. |

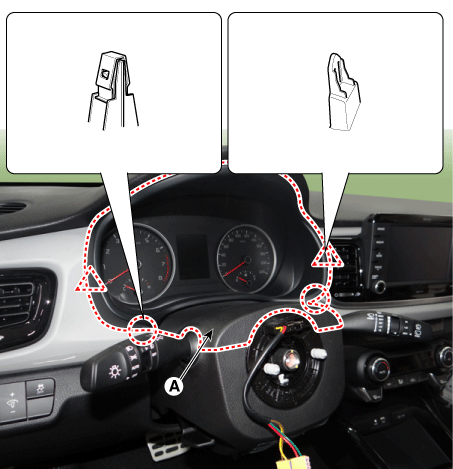

Remove the cluster fascia panel (A) by using a remover.
|
| 2. |
Install in the reverse order of removal.
|
Replace any damaged clips.
|
|
Components and components location
Components
1. Cowl cross bar assembly
2. Main wiring harness
3. Main crash pad assembly
4. Side air vent duct assembly [RH] ...
Components and components location
Component Location
1. Center fascia panel assembly
Repair procedures
Replacement
...
Other information:
Components and components location
Components
1. Shoe hold down pin
2. Shoe adjuster
3. Upper return spring
4. Adjusting lever
5. Shoe
6. Adjusting spring
7. Lower return spring
8. Shoe hold spring
Repair procedures
Remo ...
Repair procedures
Replacement
Put on gloves to protect your hands.
•
Use a plastic panel removal tool to remov ...
