Kia Rio: If you have a flat tire (with Tire Mobility Kit) / Components of the Tire Mobility Kit

Kia Rio 2017-2020 YB Owners Manual / What to do in an emergency / If you have a flat tire (with Tire Mobility Kit) / Components of the Tire Mobility Kit

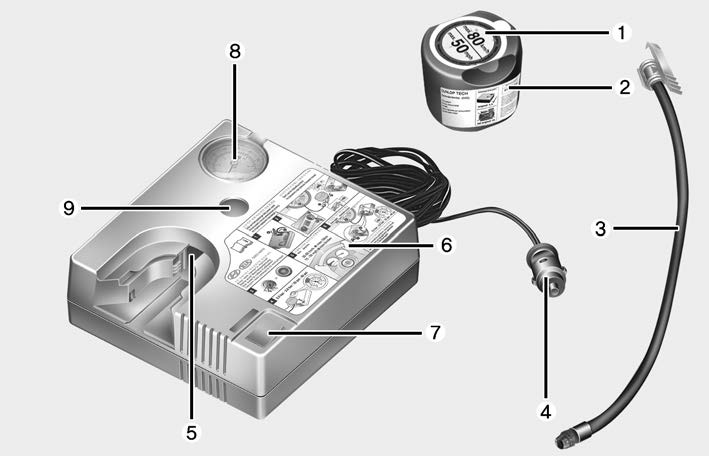

1. Speed restriction label
2. Sealant bottle and label with speed restriction
3. Filling hose from sealant bottle to wheel
4. Connectors and cable for the power outlet direct connection
5. Holder for the sealant bottle
6. Compressor
7. On/off switch
8. Pressure gauge for displaying the tire inflation pressure
9. Button for reducing tire inflation pressure

Connectors, cable and connection hose are stored in the compressor housing.

WARNING - Expired sealant

Do not use the Tire sealant after expiration date noted on the sealant bottle.This can increase the risk of tire failure.

WARNING - Sealant

Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.

✽ NOTICE

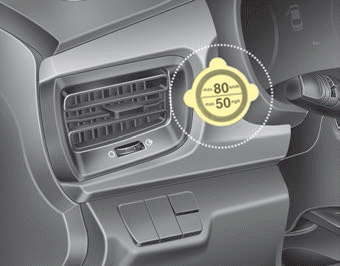

Before using the tire repair kit, please read carefully the instruction attached on the sealant case. Detach the speed limit label on the sealant case and put it on a highly visible place. Always drive within the speed limit.
