Kia Rio: Engine Control System / Purge Control Solenoid Valve (PCSV)
Specifications
Purge Control Solenoid
Valve (PCSV)
Item
|
Specification
|
Coil Resistance (Ω)
|
18.5 - 22.5 [23°C (73.4°F)]
|
Pin
|
2
|
Description and operation

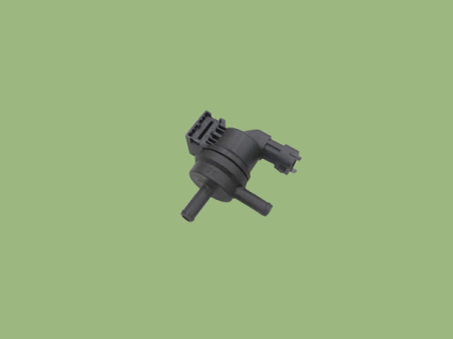

Purge Control Solenoid Valve (PCSV) is a solenoid valve and is installed on the
surge tank and controls the passage between the canister and the intake manifold.
The evaporative gases gathered in the canister are delivered to the intake manifold
when the PCSV is open by ECM control signal.

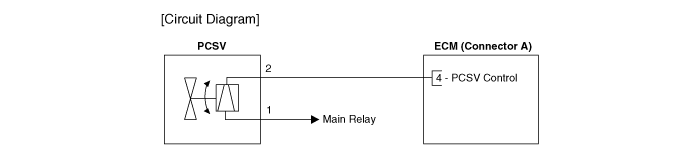

Schematic diagrams
Repair procedures
| 1. |
Turn ignition switch OFF.
|
| 2. |
Disconnect PCSV connector.
|
| 3. |

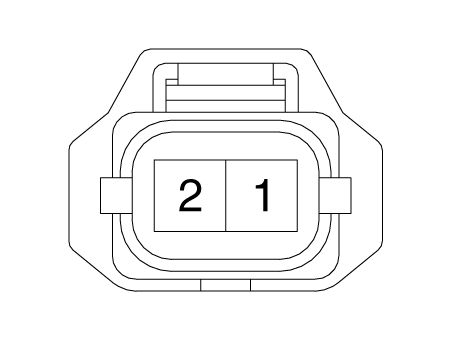

Measure resistance between PCSV terminals 1 and 2.
|
| 4. |
Check that the resistance is within the specification.
|
Specification: 18.5 - 22.5 [23°C (73.4°F)]
|
|
| 1. |
Turn the ignition switch OFF and disconnect the battery negative (-)
terminal.
|
| 2. |

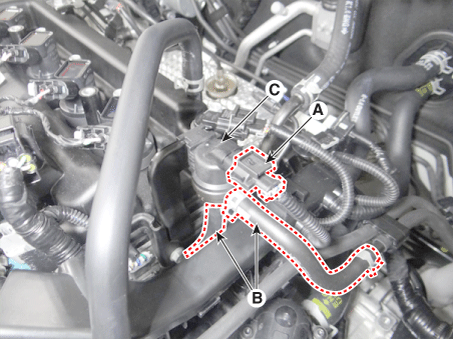

Disconnect the purge control solenoid valve connector (A) and vapor hoses
(B).
|
| 3. |
Remove the purge control solenoid valve (C).
|
| • |
Install the component with the specified torques.
|
| • |
Note that internal damage may occur when the component is dropped.
In this case, use it after inspecting.
|
| • |
Be careful of foreign material not to flow into the valve.
|
|
| 1. |
Installation is reverse of removal.
|
