Kia Rio: Emission Control System / Crankcase Emission Control System
Kia Rio 2017-2020 YB Service Manual / Emission Control System / Crankcase Emission Control System

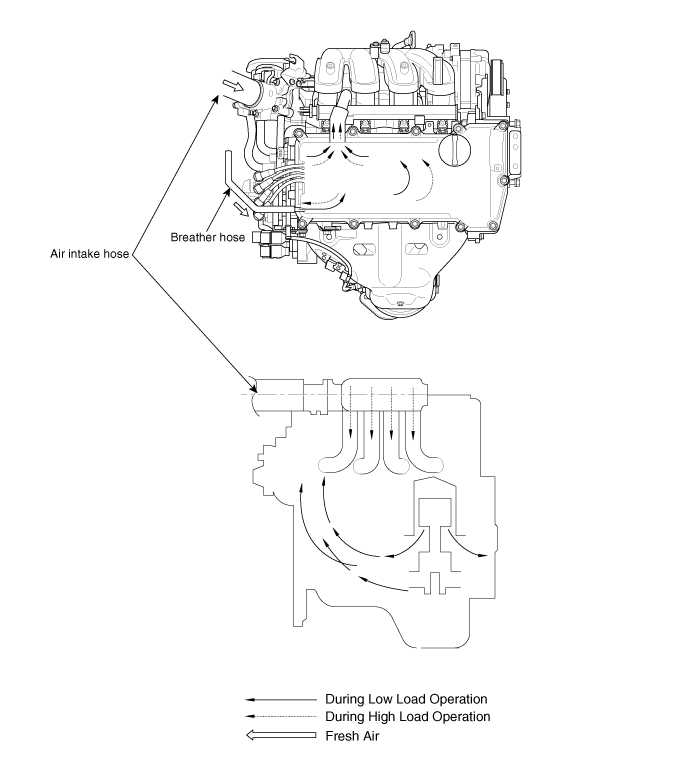

Schematic diagrams
| Schematic Diagram |
Repair procedures
| Inspection |
| 1. |
After disconnecting the vapor hose from the PCV valve, remove the PCV valve. |
| 2. |
Reconnect the PCV valve to the vapor hose. |
| 3. |

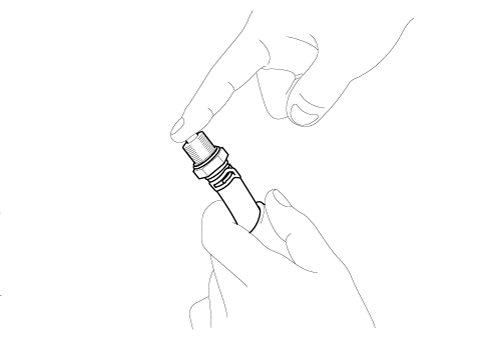

Run the engine at idle, and put a finger on the open end of the PCV valve and make sure that intake manifold vacuum can be felt.
|
| 4. |
If the vacuum is not felt, clean or replace the vapor hose. |
