Kia Rio: Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve
Kia Rio 2017-2020 YB Service Manual / Emission Control System / Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve
Description and operation
| Operation Principle |
Repair procedures
| Removal |
| 1. |

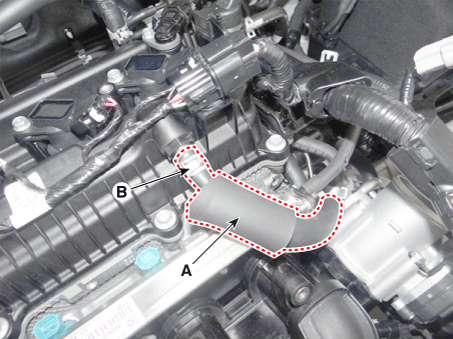

Disconnect the vapor hose (A) and then remove the PCV valve (B).
|
| Inspection |
| 1. |

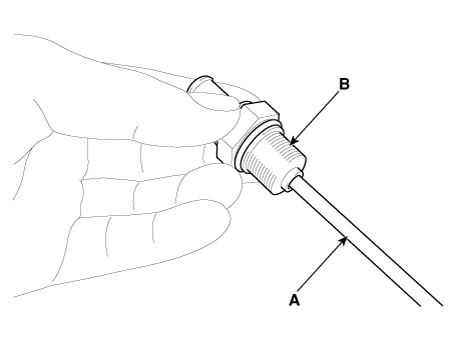

Insert a thin stick (A) into the PCV valve (B) from the threaded side to check that the plunger moves.
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
Crankcase Emission Control System
Schematic diagrams
Schematic Diagram
Repair procedures
Inspection
1.
After disconnecting the vapor hose from the PCV valve, remove the PCV
valve.
...
