Kia Rio: Drive Belt System / Drive Belt
Repair procedures
| 1. |
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
|
| 2. |
Remove the drive belt.
| (1) |

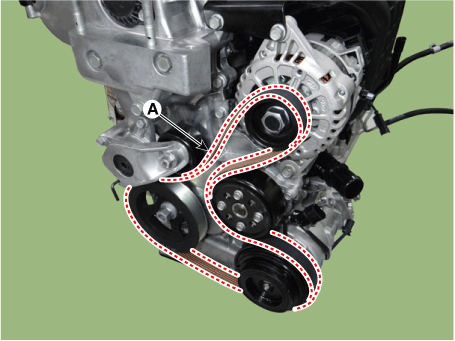

To release the tension, turn the drive belt tensioner (A) counterclockwise.
|
| (2) |
Remove the drive belt (A).
|
|
| 3. |
Install in the reverse order of removal.
|
| 1. |

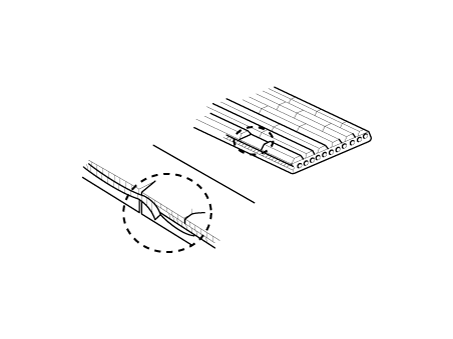

Visually check the belt for excessive wear, frayed cords etc.
If any defect has been found, replace the drive belt.
|
Cracks on the rib side of a belt are considered acceptable. If
the belt has chunks missing from the ribs, it should be replaced.
|
|
| 2. |
Check belt for maintenance and abnormal wear of V-ribbed part. Replace
if necessary.
| •
|
Do not bend, twist or turn the drive belt inside out.
|
| •
|
Do not allow the drive belt to come into contact with
oil, water and steam.
|
|
|
Repair procedures
Removal and Installation
1.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under Cover")
...
