Kia Rio: Drive Belt System / Drive Belt Tensioner
Kia Rio 2017-2020 YB Service Manual / Engine Mechanical System / Drive Belt System / Drive Belt Tensioner
Repair procedures
| Removal and Installation |
| 1. |
Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover") |
| 2. |
Remove the drive belt. (Refer to Drive Belt System - "Drive Belt") |
| 3. |

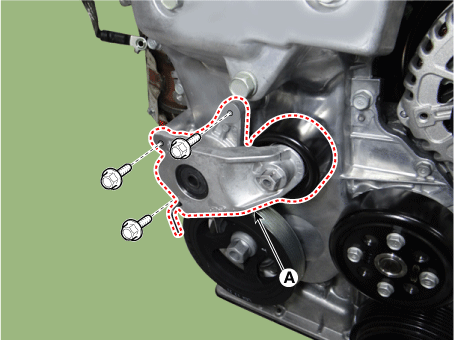

Remove the drive belt tensioner (A).
|
| 4. |
Install in the reverse order of removal. |
| Inspection |
Check the drive belt tensioner for excessive foreign substances, crack, damage or sticking of pivot shaft. Replace if necessary.
