Components and components location

Component Location

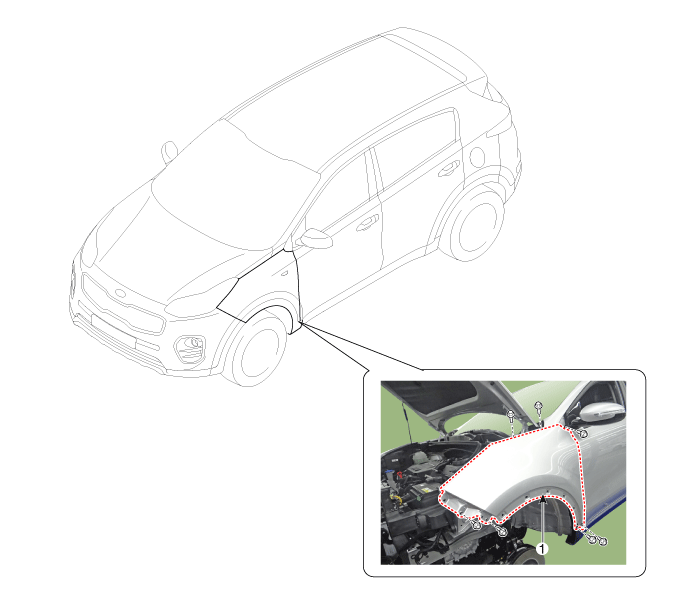

1. Fender assembly

Repair procedures

Replacement

•	Be careful not to damage the fender and body.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

1.	Remove the head lamps. (Refer to Body Electrical System - "Headlamps")

2.	Remove the front wheel guard. (Refer to Body Side Molding - "Front Wheel Guard")

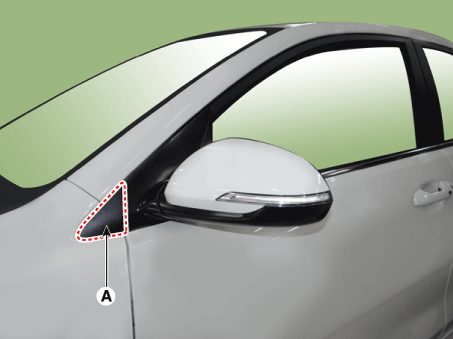

3.	Using a remover, remove the delta garnish (A).

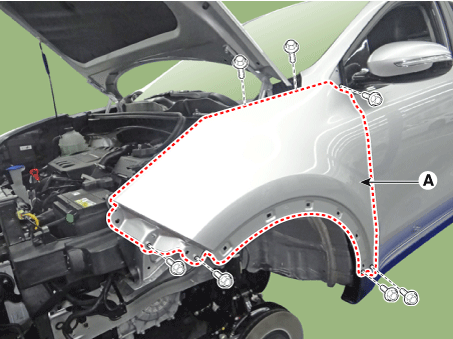

4.	After loosening the mounting screws, bolts, and nut, remove the fender assembly (A).

Install in the reverse order of removal.
