Kia Rio: Body (Interior and Exterior) / Fuel Filler Door

Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Fuel Filler Door

Components and components location

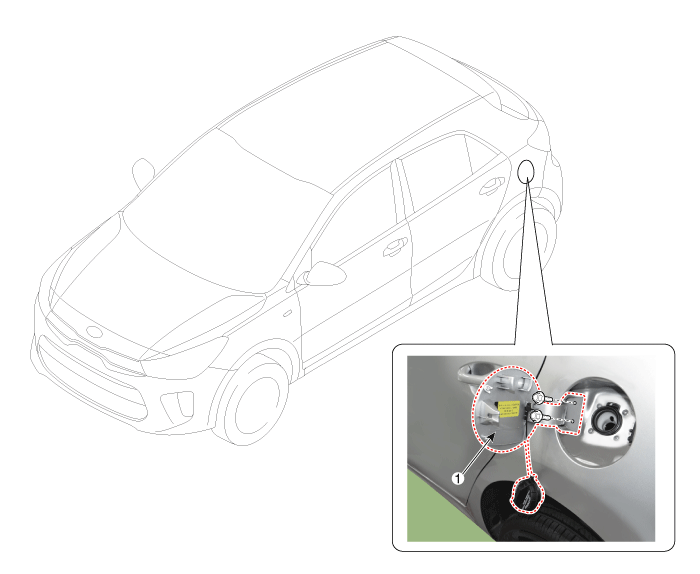

Component Location

1. Fuel filler door

Repair procedures

Replacement

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

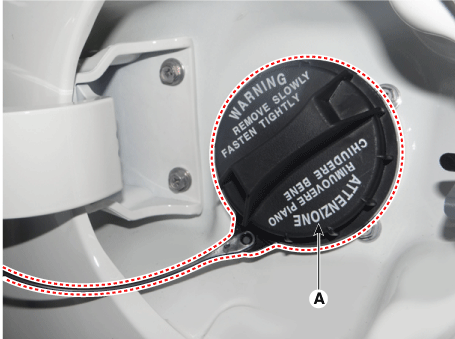

1.	Open the fuel filler door and then filler door cap.

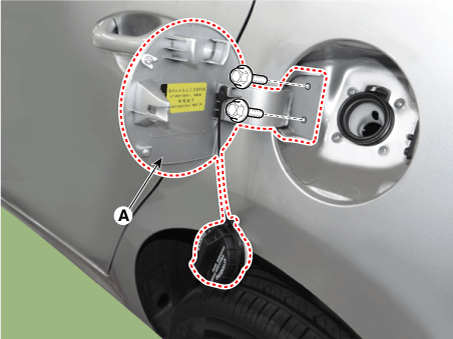

2.	Remove the fuel filler door (A) after loosening the mounting screws.

Install in the reverse order of removal.

•	Make sure the fuel filler door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
