Kia Rio: Fuel Delivery System / Fuel Filter
Repair procedures
| Removal |
| 1. |
Remove the fuel pump. (Refer to Fuel Delivery System - "Fuel Pump") |
| 2. |

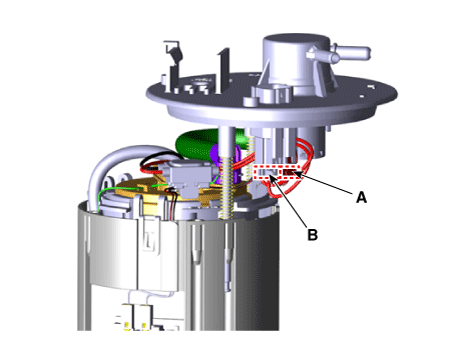

Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
|
| 3. |
Disconnect the fuel feed tube quick-connector (A) after removing the fixing clip (B).
|
| 4. |
Remove the cushion pipe fixing clip (A), and then separate the head assembly (B) from reservoir cup.
|
| 5. |

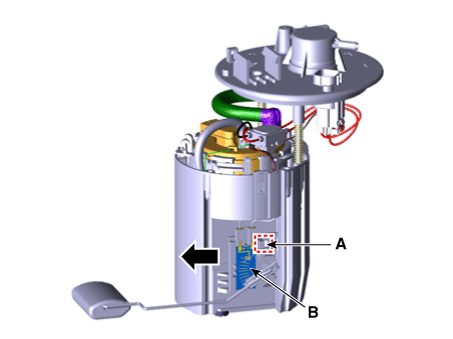

Press the fixing hook (A) with a driver and then remove fuel sender in the arrow direction.
|
| 6. |
Remove the reservoir-cup (B) after releasing the fixing hooks (A).
|
| 7. |

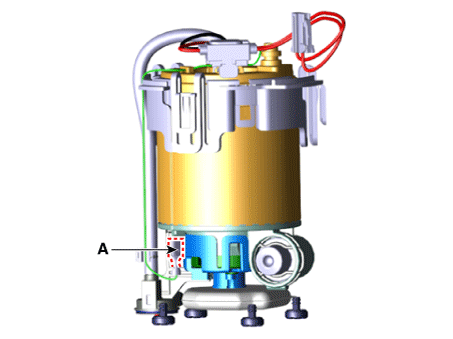

Disconnect the ground pin (A).
|
| 8. |

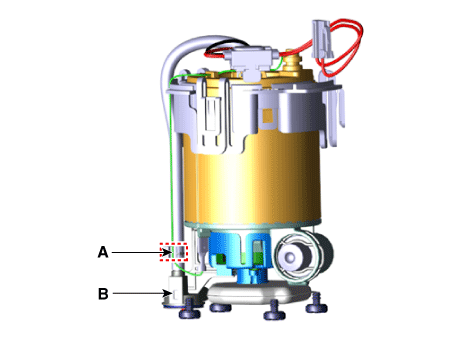

Remove the fixing clip (A), and then assist pump assembly (B).
|
| 9. |

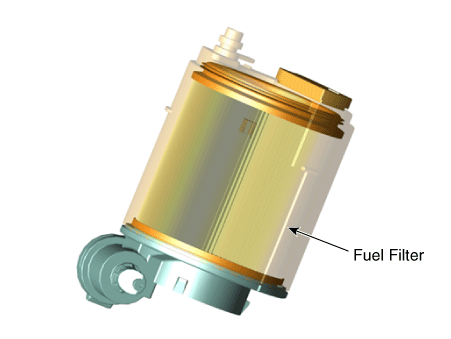

Remove the free-filter (A) after releasing the fixing hooks.
|
| 10. |

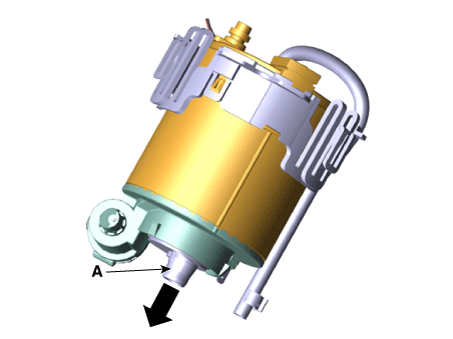

Separate the electric pump motor (A).
|
| 11. |
Replace new fuel filter.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
Fuel Pump
Repair procedures
Inspection
[Fuel pump]
1.
Turn ignition switch OFF and disconnect the negative (-)battery cable.
2.
Remove the fuel pump assembl ...
Fuel Pump Motor
Repair procedures
Removal
1.
Remove the fuel pump.
(Refer to Fuel Delivery System - "Fuel Pump")
2.
Disconnect the fuel pump motor con ...
