Kia Rio: Exhaust Emission Control System / Catalytic Converter
Kia Rio 2017-2020 YB Service Manual / Emission Control System / Exhaust Emission Control System / Catalytic Converter
Description and operation
| Description |
The catalytic converter of the gasoline engine is a three way catalyst. It oxidizes carbon monoxide and hydrocarbons (HC), and separates oxygen from the oxides of nitrogen (NOx).

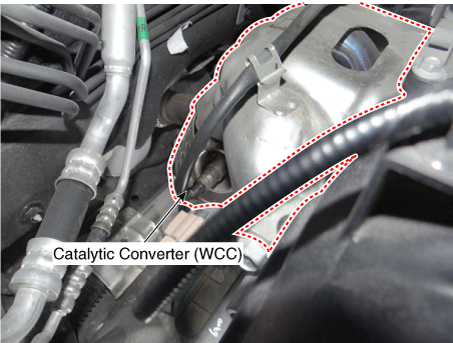

[WCC]
[UCC]
