Kia Rio: Lane Departure Warning System (LDWS) / Lane Departure Warning System (LDWS) Unit

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Lane Departure Warning System (LDWS) / Lane Departure Warning System (LDWS) Unit
Components and components location
Components

Repair procedures
Removal


When replacing the LDWS switch, check that the symbol mark in the cluster operates normally by pressing the ON/OFF switch.

1.

Disconnect the negative (-) battery terminal.

2.

Using a screwdriver or remover, remove the mirror wiring cover (A).

3.

Disconnect the LDWS unit connector (A).

4.

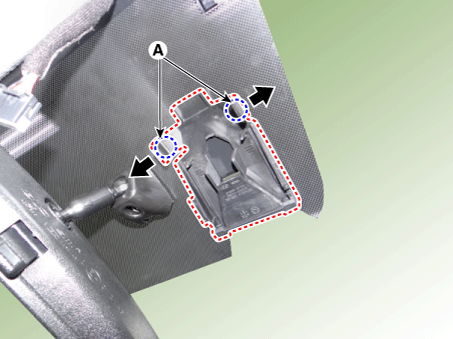

Remove the LDWS unit (B) by pulling out lock pins (A).

Installation
1.

Install the LDWS unit.

2.

Connect the LDWS unit connector.

3.

Install the mirror wiring cover.

4.

Connect the negative (-) battery terminal.
