Kia Rio: Front Seat Belt / Front Seat Belt Buckle
Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle
Components and components location

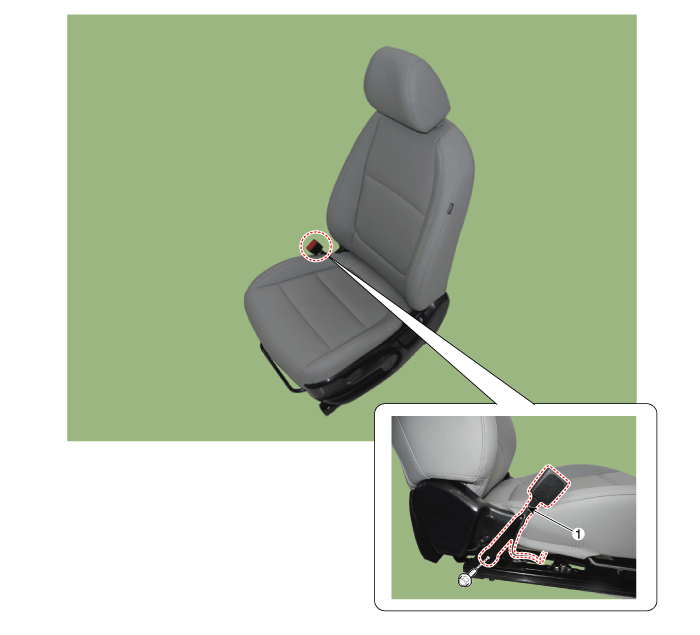

| Component Location |
| 1. Front seat belt buckle |
Repair procedures
| Replacement |
| 1. |
Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly") |
| 2. |

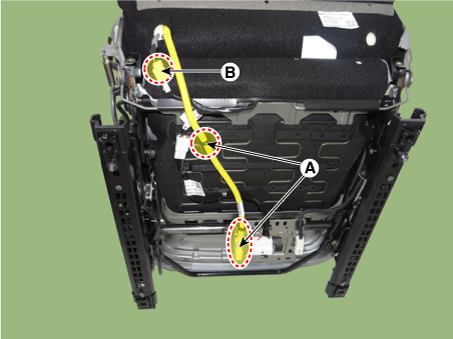

Disconnect the front seat belt buckle connector wiring (A).
|
| 3. |
Remove the front seat belt buckle (A) loosening the mounting bolt.
|
| 4. |
Install in the reverse order of removal.
|
