Kia Rio: Body (Interior and Exterior) / Hood
Repair procedures

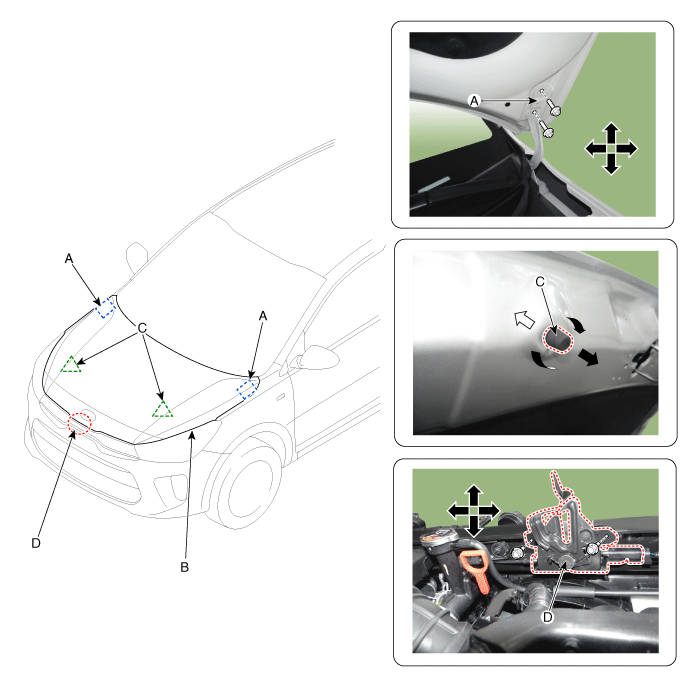

| Adjustment |
| 1. |
After loosening the hinge (A) mounting bolts, adjust the hood (B) by moving it up and down, or right and left. |
| 2. |
Adjust the hood height by turning the hood overslam bumpers (C). |
| 3. |
After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up and down, or right and left.
|
Front Seat Belt Buckle
Components and components location
Component Location
1. Front seat belt buckle
Repair procedures
Replacement
1.
Remove the ...
Hood Assembly
Components and components location
Component Location
1. Hood assembly
Repair procedures
Replacement
...
