Kia Rio: Hood / Hood Assembly

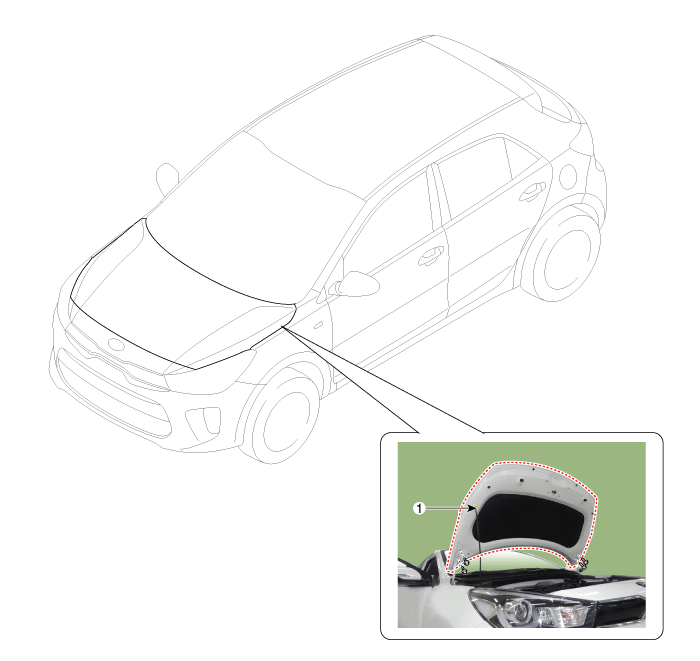

Components and components location
Repair procedures
|
Be careful not to damage the hood and body.
|
| • |
When removing and installing the hood, an assistant is needed.
|
| • |
When removing the clips, use a clip remover.
|
|
| 1. |

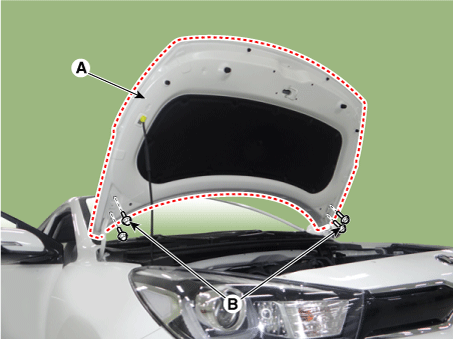

Remove the hood assembly (A) after loosening the hood hinge (B) mounting
bolts.
|
Tightening torque :
21.6 - 26.5 N·m (2.2 - 2.7 kgf·m, 15.9 - 19.5 lb·ft)
|
|
| 2. |
Install in the reverse order of removal.
| •
|
Make sure the hood locks/unlocks and opens/closes properly.
|
| •
|
Adjust the hood alignment.
|
|
|
Repair procedures
Adjustment
1.
After loosening the hinge (A) mounting bolts, adjust the hood (B) by
moving it up and down, or right and left.
2.
...
Repair procedures
Replacement
1.
Using a clip remover, detach the clips, and remove the hood insulator
pad (A).
...
