Kia Rio: Front Seat Belt / Height Adjust
Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Front Seat Belt / Height Adjust
Components and components location

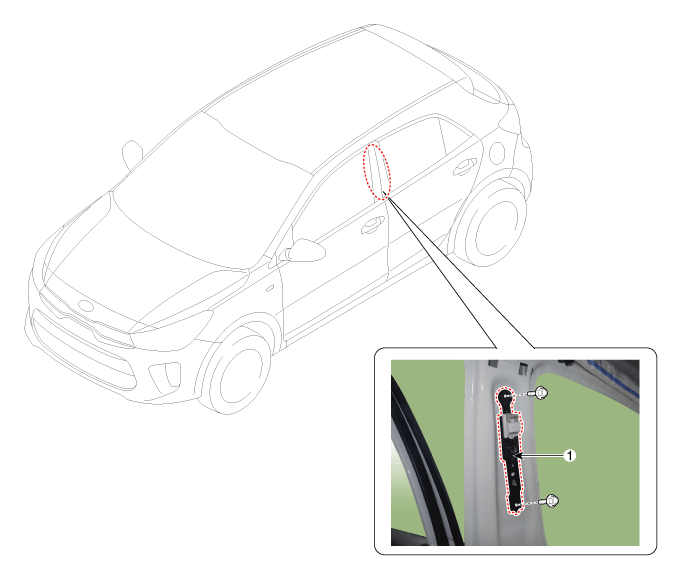

| Component Location |
| 1. Height adjust |
Repair procedures
| Replacement |
| 1. |
Remove the front seat belt upper anchor. (Refer to Front Seat Belt - "Front Seat Belt Retractor") |
| 2. |

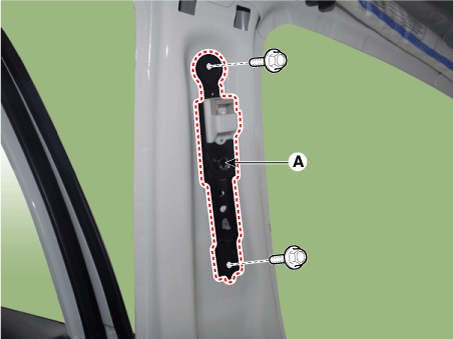

After loosening the mounting bolts, then remove the height adjust (A).
|
| 3. |
Install in the reverse order of removal.
|
