Repair procedures
| Removal |
| 1. |
Remove the fuel pump. (Refer to Fuel Delivery System - "Fuel Pump") |
| 2. |

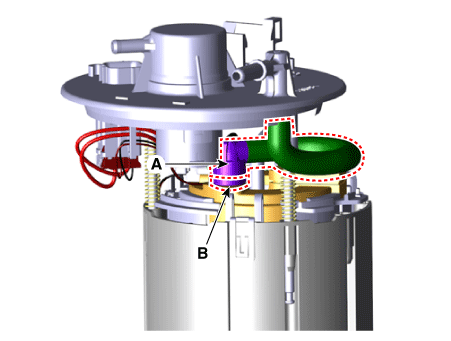

Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
|
| 3. |
Disconnect the fuel feed tube quick-connector (A) after removing the fixing clip (B).
|
| 4. |

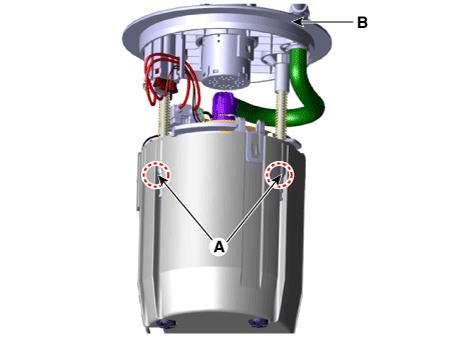

Remove the cushion pipe fixing clip (A), and then separate the head assembly (B) from reservoir cup.
|
| 5. |

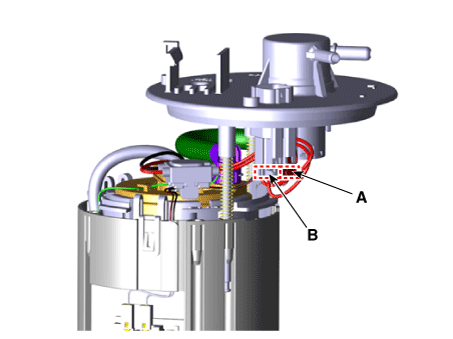

Press the fixing hook (A) with a driver and then remove fuel sender in the arrow direction.
|
| 6. |

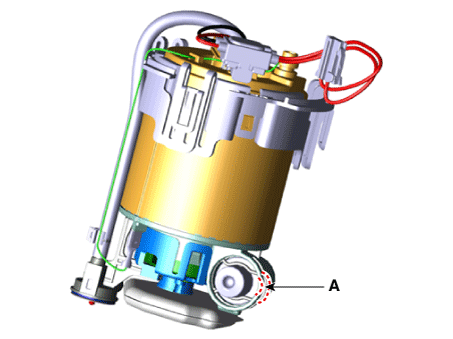

Remove the reservoir-cup (B) after releasing the fixing hooks (A).
|
| 7. |

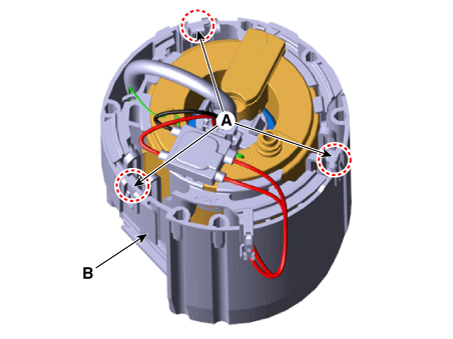

Remove the fuel pressure regulator fixing clip (A).
|
| 8. |

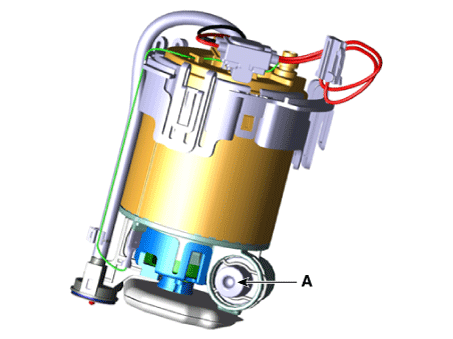

Remove the fuel pressure regulator (A) from the fuel filter.
|
| Installation |
| 1. |
Install in the reverse order of removal. |
