Kia Rio: Fuel Delivery System / Filler-Neck Assembly
Kia Rio 2017-2020 YB Service Manual / Engine Control / Fuel System / Fuel Delivery System / Filler-Neck Assembly
Repair procedures
| Removal |
| 1. |
Open the fuel filler door and then remove the filler-neck mounting bolts (A).
|
| 2. |
Left the vehice. |
| 3. |
Remove the rear-LH wheel, tire, and the inner wheel house. |
| 4. |

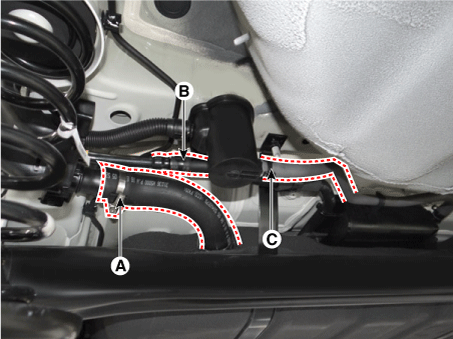

Disconnect the fuel filler hose (A), the leveling hose (B) and the ventilation hose (C).
|
| 5. |
Remove the filler-neck assembly from the vehicle after removing the bracket intallation bolt (A).
|
| Installation |
| 1. |
Installation is reverse of removal. |
