Kia Rio: Body Electrical System / Horn

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Horn
Components and components location

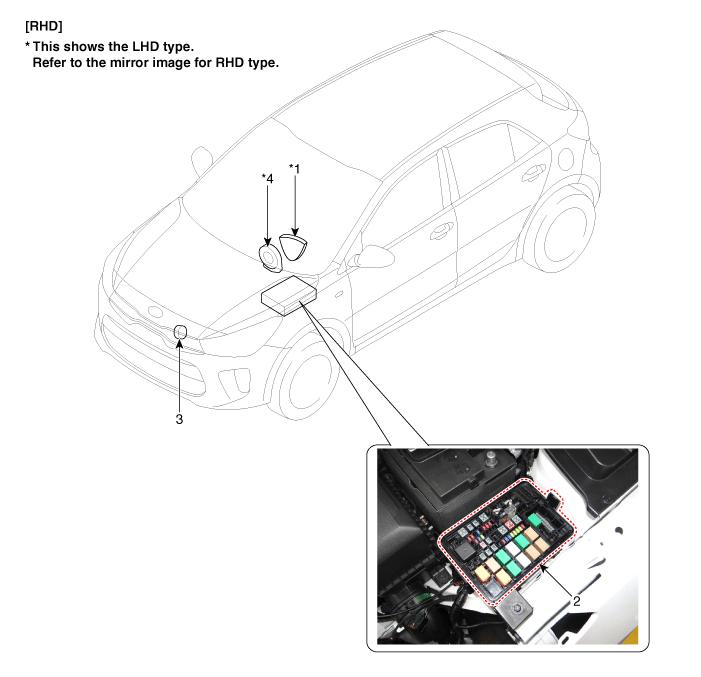

Component Location

1. Horn switch
2. Horn relay
3. Horn
4. Clock spring

Repair procedures
Removal
1.

Remove the front bumper assembly.

(Refer to Body - "Front Bumper Assembly")

2.

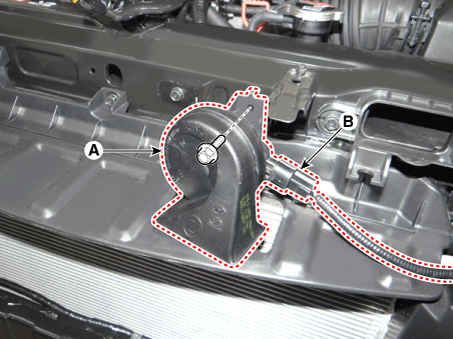

Remove the horn (A) after disconnecting the horn connector (B) and loosening the mounting the bolt.

Installation
1.

Install the horn after connecting the horn connector.

2.

Install the front bumper assembly.

Inspection
1.

The relay on the horn of this vehicle is built into the engine room relay block.
